Plastic Teller Rosette Rings Random Tower Packing Random Packing Plastic Teller Rosette Ring for Scrubbing
Price:
CN¥1,400.76 - CN¥2,311.26
MOQ:
1.0 Cubic Meter/Cubic Meters (Min. Order)
Delivery Time:
5-8 work day
Brand:
NAIKE
Product Description
Description

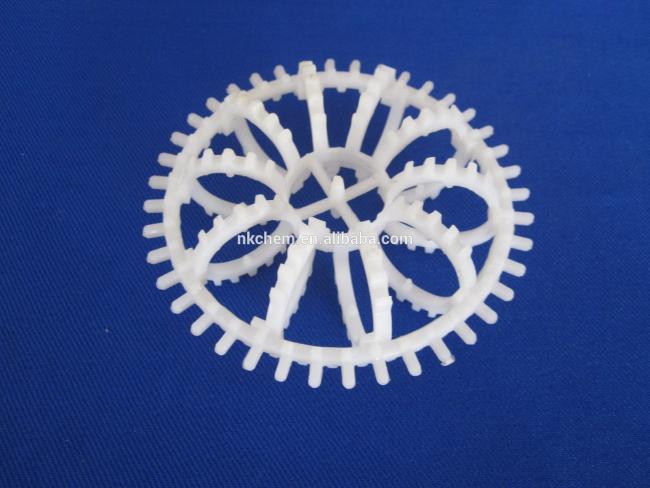

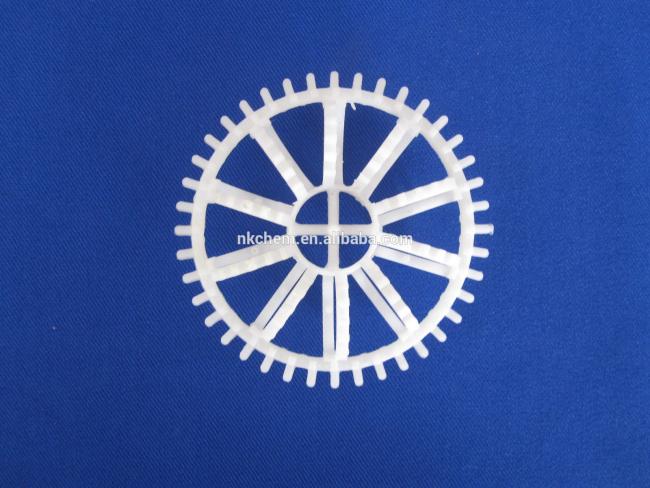

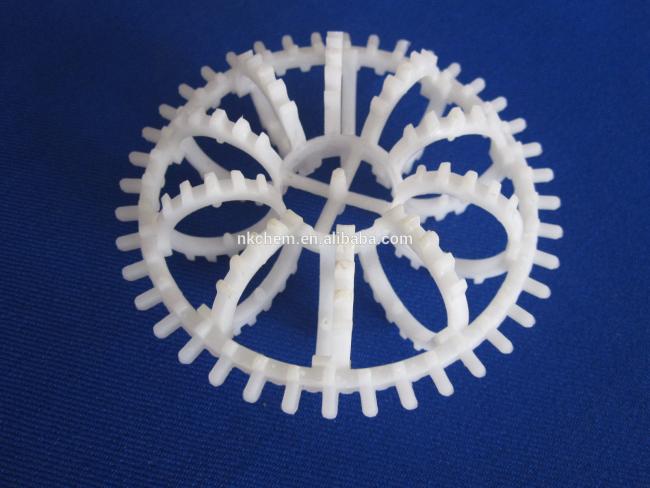

Plastic Rosette Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Product Properties
| Spec. | D*H*T(mm) | Number per m³ | Bulk density (Kg/m³) | Surface area (m²/m³) | Free volume (%) |
| Dg255-ring | 25*9*1.5*2 | 170000 | 90 | 195 | 82 |
| Dg479-ring | 47*19*3*3 | 32500 | 111 | 185 | 88 |
| Dg519-ring | 51*19*3*3 | 23500 | 103 | 180 | 98 |
| Dg5912-ring | 59*19*3*3 | 17500 | 72 | 150 | 92 |
| Dg7312-ring | 73*28*3*4 | 8000 | 80 | 127 | 89 |
| Dg9518-ring | 95*37*3*6 | 3900 | 78 | 94 | 90 |
| Dg14520-ring | 145*48*3*6 | 1100 | 48 | 65 | 95 |
Plastic Tellerate Rosette Features:
Tellerette 2K Tower Packing maintains good liquid distribution through packing depths in excess of 10 metres. Good initial liquid distribution is essential. Spray headers using full cone spray nozzles arerecommended.
Features:
Improved mass transfer efficiency. Large voidage. Low pressure drop. Low mass-transfer unit height. Uniform gas and liquid distribution. High mass transfer efficiency. Suitable temperature ranges from 60 °C to 150 °C. Chemical stability.
