Polypropylene Plastic Random Packing Super Intalox Saddle Ring 50mm 76mm
Polypropylene Plastic Random Packing Super Intalox Saddle Ring 25mm, 38mm, 50mm, 76mm
Product description
Plastic Super Intalox is a kind of advanced packing which is made of heat resistant and chemical corrosion resistant plastics, such as PE, PP, RPP, PVC, CPVC and PVDF. So it is economical and has versatile industry standard with well-known performance characteristics.
Advantage:Low pressure drop, high flux, high efficiency, easy to handle.
Application:Absorption, scrubbing, stripping services, Pulp and paper service, such as bleach plant absorbers, versatile alternative to ceramic saddle.
Physical & chemical properties of plastic random packing
| Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 |
0.93-0.94 |
1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Main technical index:
| Name | Normal mm |
Diameter*Height* Thickness mm |
Surface area m2/m3 |
Void space % |
Bulk density kg/m3 |
No.elements per/m3 |
Packing factor m-1 |
| Intalox saddles | ø25 | 25*13*1.2 | 288 | 85 | 102 | 97680 | 467 |
| ø38 | 38*19*1.2 | 265 | 95 | 91 | 25200 | 309 | |
| ø50 | 50*25*1.5 | 250 | 96 | 75 | 9400 | 282 | |
| ø76 | 76*38*3.0 | 200 | 97 | 59 | 3700 | 220 |
Note: The above data are reference to material PP.
Package info
| package | volume | volume/bag | |
| 20GP container | woven bag | 25-28m3 | 0.1-0.3m3 |
| 40GP container | woven bag | 52-55m3 | 0.1-0.3m3 |
| 40HQ container | woven bag | 60-65m3 | 0.1-0.3m3 |

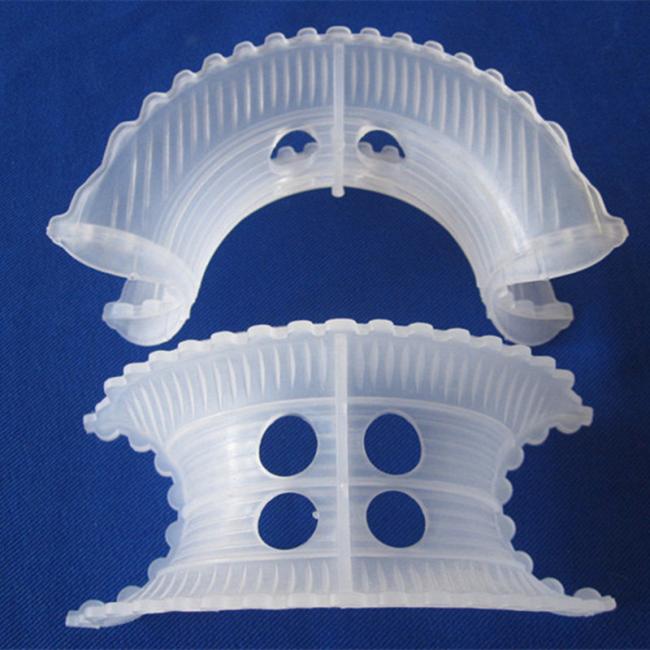

Product photo
Plastic Material: 100% virgin PP granules
Production and shipment
Other plastic random packing products
Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,
hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing
