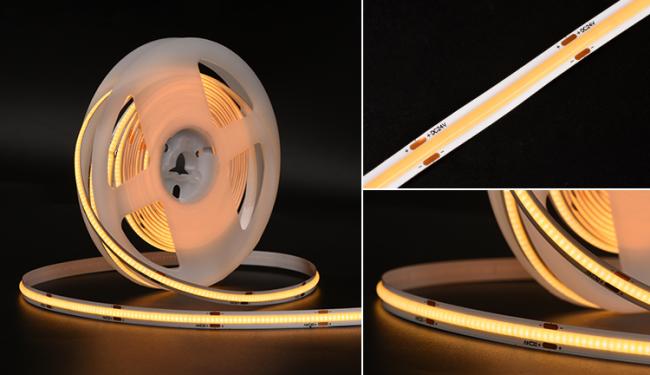

Ultra Narrow 4mm Self Adhesive LED Strip 2700K-6500K Natural White

Nominal input voltage

24V DC

Voltage range

23-25V DC

LED types

COB

Product dimension

L5000*W5*H2mm

LED QTY/m

480pcs

PCB dimension

5mm x 3oz (1/2oz)

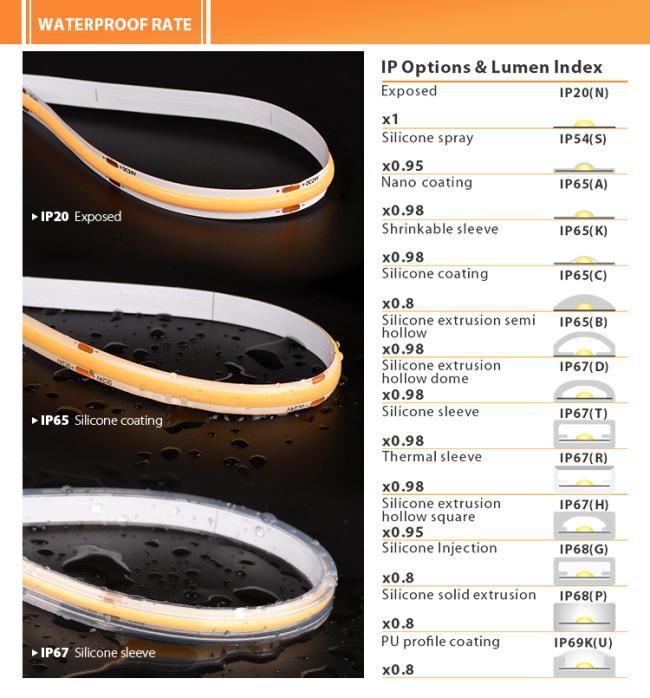

IP rating (optional)

IP20 (IP65,IP67,IP68)

Cut points

50mm(24L)

Beam angle

120°

Material of coating

N/A

Bend radius

R<50mm

Customized length/reel

0.1 to 10meters

Dimming function

PWM/ 0-10V/ DALI

Standard length/reel

5meters

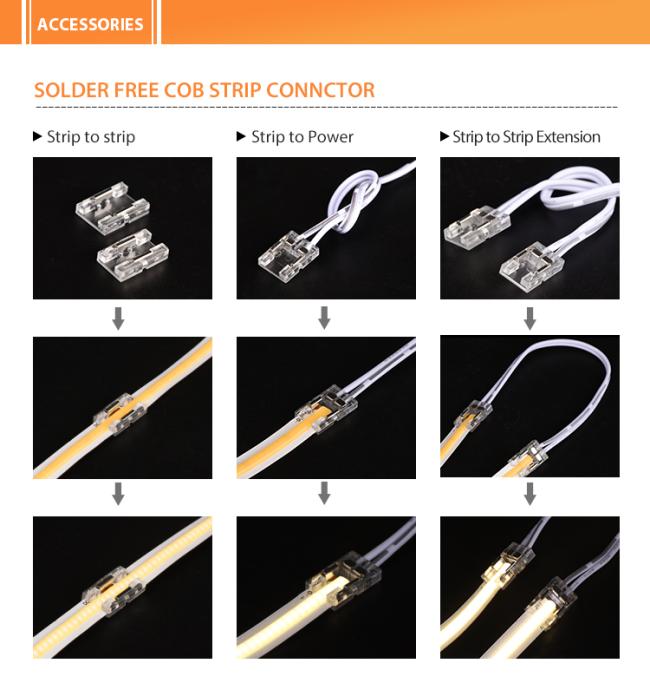

Connection

2 x 0.5MM² / 20AWG wire / DC connector

Installation.

3M 300LSE adhesive tape

Part number

LT-SWCOBN480-XX90-24-YYY

XX:24=2400K/ 27=2700K/ 30=3000K/ 40=4000K/ 50=5000K/ 57=5700K/ 65=6500K

YYY: 100=10W

Power consumption/m

7W

CCT

2400~6500K

Lumen output/m

640~700LM

Efficacy

80~100Lm/w

MAXRUN® in series

5 m (2A)

Binning tolerance & code

SDCM<3

CRI (White)

Ra+92;R9+68

TM30

Rf=90 Rg=99

TLCI(Qa)

90

Warranty

5 years
