Swing Electronic Turnstile Gates Stainless Steel 304 Automatic Flap Barrier
Automatic Swing Turnstiles Gate Stainless Steel 304 Electric Customized Barriers Gate
Detail:
- High quality imported stainless steel 304 as raw material
- Environmentally friendly transparent acrylic baffle
- High-precision anti-pinch infrared induction probe
- Illegal intrusion alarm, trailing alarm, reverse intrusion alarm
- Can be used with various card reading devices
- Different traffic modes can be customized, such as one-way traffic, two-way traffic, etc.
Description:
Swing gate, also known as swing turnstile gate, is a common traffic equipment, mainly used to control and manage the flow of people in and out. Its main function is to control the quantity and direction of the flow of people and prevent illegal intrusion or escape. Swing turnstile gates are usually installed in places where the flow of people needs to be controlled, such as subway stations, railway stations, sports venues, commercial buildings, etc.
Specification:
| Physical size (mm): | 1400 (length) × 280 (width) × 980 (height) can be customized |
| Cabinet material: | SUS304 stainless steel, surface drawing treatment |
| Material thickness (mm): | 1.5 |
| Passage width (mm): | 700 (standard) |
| Gate wing material: | Plexiglass |
| Gate wing size (mm): | 325 (length) × 555 (height) × 10 (thickness) |
| Response time of gate opening and closing: | <0.1 second |
| Gate wing running speed: | ≥ Rad/s (adjustable) |
| Average number of failure-free operations: | 5 million times |
| Passage target detection: | 4 groups of infrared beams |
| Passing speed: | ≥50 people/min (normally closed mode) |
| Application environment: | indoor/outdoor |
| Working temperature: | -30℃～60℃ |
| Working humidity: | ≤90%, no condensation |
| Power supply: | AC220V±, 50Hz |
| Average power consumption (W): | 60 |
Application:

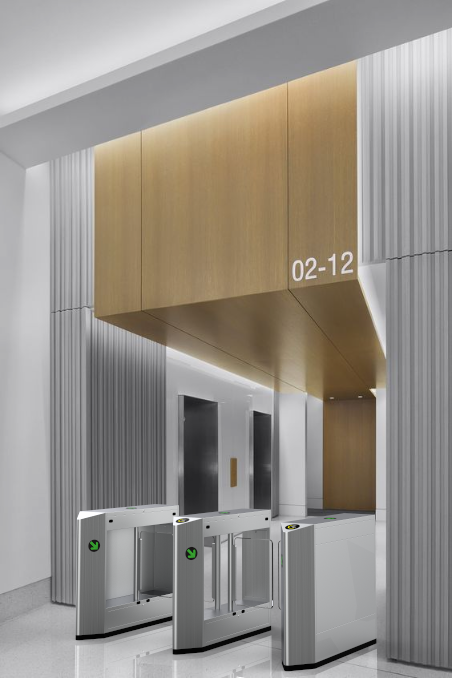

Swing gates are usually installed at the entrance and exit of subway stations to control the flow of people in and out and prevent people from riding without tickets.Gymnasiums, swimming pools and other sports venues will also install swing gates to count the number of visitors and prevent entry without tickets.
FAQ:
- Q: Can I install it myself?
A: Yes it wll be easy to install, we will provide the installation instruction and video
2. Q: Is the product waterproof?
A: Yes, our products are waterproof and can be used outdoor
3. Q: Are you a distributor or a manufacturer?
A: Hello, we are manufacturer, the factory sell directly, the price and service have advantages
4. Q: How is the freight calculated?
A: it varies according to the delivery address, for detail you can consult the online customer service staff
5. Q: How long is the production cycle?
A: Conventional products are basically available in stock, and the production cycle of customized products is about one week
