SUS304 Flap Turnstile Gate Entrance Barrier With RFID Card Reader
RFID Card Reader SUS.304 Flap Turnstile Gate For Office Building
Rfid Card Reader Security Automatic Access Control System Flap Turnstile Gate
Detail
- The flap turnstile gate adopts infrared induction control, effectively preventing accidents such as human trapping
- Emergency evacuation function, power failure emergency function.
- it can pass 40 to 60 people per minute, greatly improving the efficiency of passage.
-
Outdoor waterproof design IP54
-
It can be remotely controlled through a computer, making it convenient for management personnel to manage it.
-
The use of high-quality stainless steel 304 materials and advanced manufacturing processes ensures its stability and durability.
Description:
The main feature of the flap turnstile gate is that there are two wing like wings on both sides, which can automatically open and close. The working principle of the flap turnstile gate machine is through built-in sensors or card readers. When someone approaches, the wing will automatically open, allowing people to pass through. When a person passes through, the gate wing will automatically close to prevent other unauthorized personnel from entering. In some places that require safety control, such as subway stations, airports, enterprises and public institutions, flap turnstile gate machines are very common equipment.
Specifications:
| Physical size (mm): | 1200 (length) × 300 (width) × 980 (height) can be customized |
| Cabinet material: | SUS304 stainless steel, surface drawing treatment |
| Material thickness (mm): | 1.5 |
| Passage width (mm): | 600-800 (standard) |
| Gate wing material: | Acrylic |
| Gate wing size (mm): | 540 (length) × 430 (width) × 8 (thickness) |
| Response time of gate opening and closing: | <0.1 second |
| Gate wing running speed: | ≥ Rad/s (adjustable) |
| Average number of failure-free operations: | 10 million times |
| Passage target detection: | 4 groups of Infrared sensor head |
| Passing speed: | ≥50 people/min (normally closed mode) |
| Application environment: | indoor/outdoor |
| Working temperature: | -30℃～70℃ |
| Working humidity: | ≤90%, no condensation |
| Power supply: | AC220V±, 50Hz |
| Average power consumption (W): | 70 |
Application:

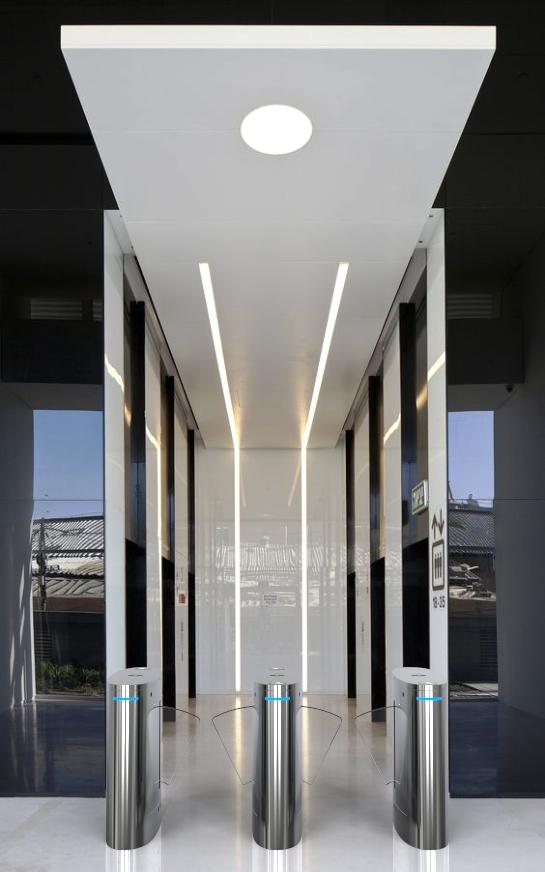

Flap turnstile gate machines with modern exterior design, it can perfectly integrate with the surrounding environment, enhancing the overall aesthetics of the venue. And suitable for various environments and places, such as enterprises, schools, libraries, swimming pools, sports venues, etc.
FAQ:
1. Q: Can I install it myself?
Answer: It can be installed by yourself. We will provide very complete installation instructions and operation videos.
2. Q: Is the product waterproof?
Answer: Yes, our products support outdoor ip53 waterproof.
3. Q: Are you a distributor or a manufacturer?
Answer: Hello, we are a super factory direct sales, and the price and service have advantages.
4. Q: How is the freight calculated?
Answer: It varies according to the delivery address. For details, please consult the online customer service staff.
