High Precision CNC Milling Tool Cutter Solid Carbide 2 Flute HRC66 Degree For Cast Iron
Price:
Please contact supplier
MOQ:
5pcs
Delivery Time:
7-10 days
Brand:
Inrover
Product Description
High Precision Solid Carbide 2 Flute CNC Milling Tool HRC66° Ball Nose End Mill For Cast Iron
Product Description:

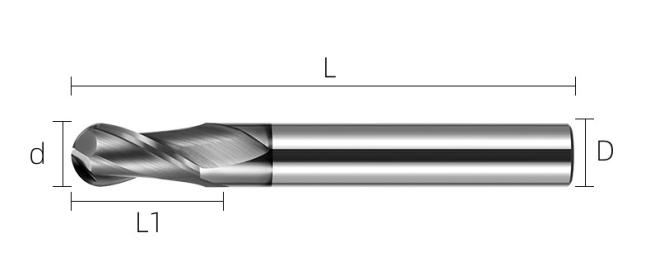

| Cutting Dia(d) | Cutting | R | Shank | Full | Flute(F) |
| 1.0 | 2 | R0.5 | 4 | 50 | 2 |
| 1.5 | 2 | R0.75 | 4 | 50 | 2 |
| 2.0 | 4 | R1.0 | 4 | 50 | 2 |
| 3.0 | 6 | R1.5 | 4 | 50 | 2 |
| 4.0 | 8 | R2.0 | 4 | 50 | 2 |
| 5.0 | 10 | R2.5 | 6 | 50 | 2 |
| 6.0 | 12 | R3.0 | 6 | 50 | 2 |
| 8.0 | 16 | R4.0 | 8 | 60 | 2 |
| 10.0 | 20 | R5.0 | 10 | 75 | 2 |
| 12.0 | 24 | R6.0 | 12 | 75 | 2 |
| 14.0 | 28 | R7.0 | 14 | 80 | 2 |
| 16.0 | 32 | R8.0 | 16 | 100 | 2 |
| 18.0 | 36 | R9.0 | 18 | 100 | 2 |
| 20.0 | 40 | R10.0 | 20 | 100 | 2 |
Technical Parameters:
| Parameter | Details |
|---|---|
| Coating | Nano Coating |
| Shank Diameter | D4-D20 |
| Helix Angle | 35° |
| Overall Length | 50mm-100mm |
| Cutting Diameter | 1.0mm-20.0mm |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Flute Length | 2mm-40mm |
| Type | Ball Nose End Mill |
| Processing Material | alloy steel, cast iron, iron, mold steel, stainless steel |
Customization:
1. Provide drawing design to us.
2. If no drawing, samples are also okay.
3. Our technical team will make drawing design for customers to approval.
4. Customer approve the drawing design, we start production.
Support and Services:
Carbide End Mill provides technical support and services, including:
- 24/7 customer service
- Comprehensive product manuals
- Online product troubleshooting
- In-person product installation and maintenance
- Training on product usage
- Replacement parts
