Triangle Carbide Turning Insert For Stainless Steel TNMG160404/8L/R-S/C
TNMG160404/8L/R-S/C Triangle Carbide Turning Insert For Stainless Steel
Product Description:

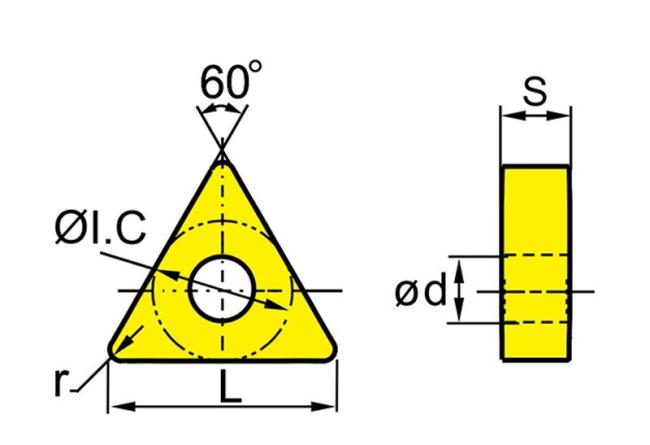

| Model | Size(mm) | ||||
| L | ΦI.C | S | Φd | r | |
| TNMG110304 | 11 | 6.35 | 3.18 | 2.26 | 0.4 |
| TNMG110308 | 11 | 6.35 | 3.18 | 2.26 | 0.8 |
| TNMG160404 | 16.5 | 9.525 | 4.76 | 2.26 | 0.4 |
| TNMG160408 | 16.5 | 9.525 | 4.76 | 2.26 | 0.8 |
| TNMG160412 | 16.5 | 9.525 | 4.76 | 2.26 | 1.2 |
| TNMG220404 | 22 | 12.7 | 4.76 | 5.16 | 0.4 |
| TNMG220408 | 22 | 12.7 | 4.76 | 5.16 | 0.8 |
| TNMG220412 | 22 | 12.7 | 4.76 | 5.16 | 1.2 |
| TNMG220416 | 22 | 12.7 | 4.76 | 5.16 | 1.6 |
| TNMG070608 | 27.5 | 15.875 | 6.35 | 6.35 | 0.8 |
| TNMG270612 | 27.5 | 15.875 | 6.35 | 6.35 | 1.2 |
| TNMG270616 | 27.5 | 15.875 | 6.35 | 6.35 | 1.6 |
Features:
1. Selected material : made of solid carbide, high impact strength,not easy to be broken
2. Wear-resistance:nano coating make insert to be durable
3. High strength and high hardness material ensures long service life
4. Full specifications and different pattern meet client's different needs
5. Smooth chip remove: sharp cutting edge, reduce built-up edge
Technical Parameters:
| Parameters | Description |
|---|---|
| Product Name | Carbide Turning Insert |
| Shape | Triangle |
| Insert Style | TNMG160408 |
| Lead Angle | 60° |
| Material | Carbide |
| Machining | semi finishing/finishing |
| Chip breaker | R-S, L-S |
Applications:
Carbide inserts are cutting tools used in machining operations, such as turning, milling, and drilling. They are made from a combination of tungsten carbide and a metallic binder, typically cobalt or nickel. The inserts have a distinct geometric shape with multiple cutting edges, allowing for efficient material removal and precise machining.
Support and Services:
We provide comprehensive technical support and service for our Carbide Turning Inserts. Our experienced team of product specialists are trained and knowledgeable in the latest advancements in Carbide Turning Insert technology and can provide you with the advice and support you need to get the most out of your project.
We offer a wide range of services, from installation and maintenance to product testing and troubleshooting. We also provide technical support and advice on how to select and use the right Carbide Turning Inserts for your specific application.
If you ever require assistance with your Carbide Turning Inserts, or if you have any questions, please don't hesitate to contact us.
