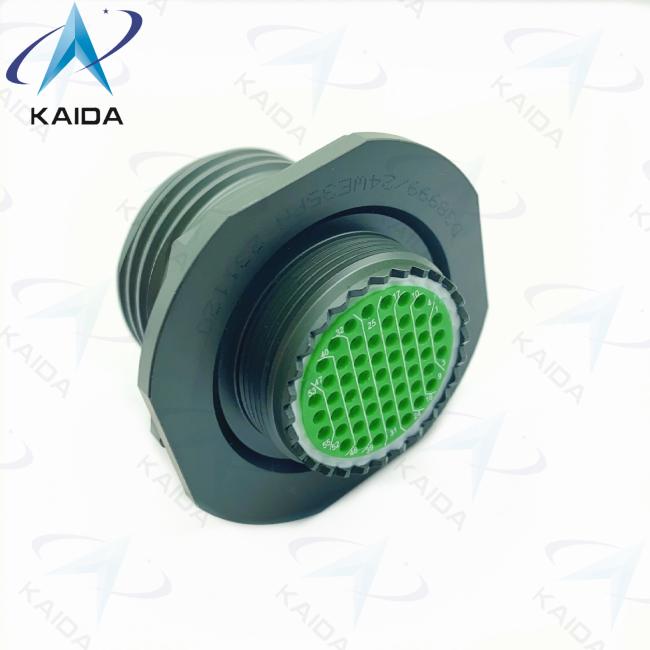

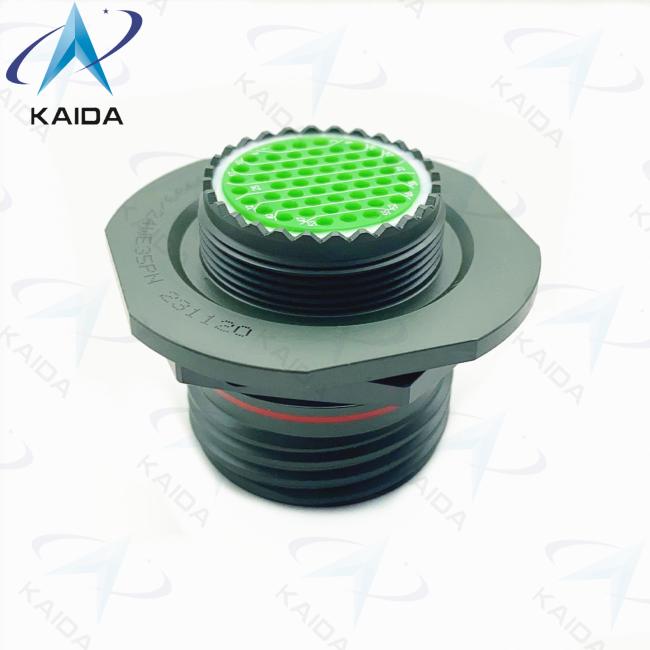

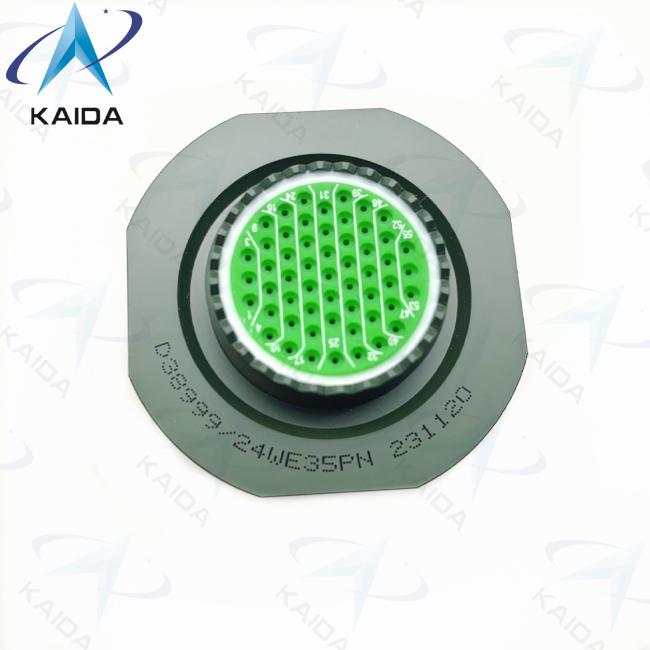

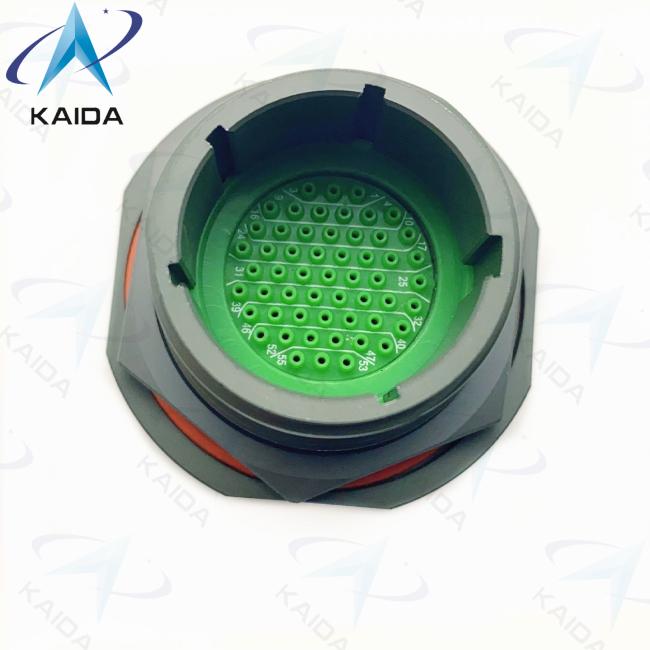

Part Number:D38999/24WE35PN

Product Description:

MIL-DTL-38999 Series Ⅲ Connectors, also known as -Detail-38999 Series Ⅲ, are designed for a wide range of and aerospace applications. These connectors offer reliable connections in harsh environments with an operating temperature range of -55°C to +125°C. They are equipped with 55 crimp contacts and a threaded coupling type. With a shell size of 17, they are suitable for high-density applications. MIL-DTL-38999 Series Ⅲ Connectors provide excellent performance in the most extreme conditions and are ideal for the most demanding and critical applications in and aerospace.

Features:

• Product Name: MIL-DTL-38999 Series Ⅲ
• Contact Material: Copper Alloy
• Connector Type: Jam Nut Receptacle
• Contact Type: Crimp
• Number of Contacts: 55
• Shell Finish: Olive Green Cadmium

Technical Parameters:

Applications:

MIL-DTL-38999 Series Ⅲ, produced by KAIDA, with Model Number D38999/24WE35PN, is a highly reliable interconnection system originated in China. It is finished with Olive Green Cadmium, and designed to work in a wide operating temperature range from -55°C to +125°C. Its shell size is 17, and the coupling type is Threaded with 55 contacts. MIL-DTL-38999 Series Ⅲ is suitable for a variety of and aerospace applications. It has excellent performance in shock, vibration, and EMI/RFI protection. With its superior mechanical strength and environmental sealing capability, MIL-DTL-38999 Series Ⅲ is the perfect choice for the most demanding applications.

Customization:

KAIDA's Detailed-38999 Series Ⅲ offers a variety of connections for and aerospace applications. The D38999/24WE35PN connector features 55 contacts, 17 shell size, threaded coupling type, jam nut receptacle and olive green cadmium finish.

Support and Services:

MIL-DTL-38999 Series Ⅲ Technical Support and Service includes:

• Product installation and validation
• Parts replacement and repair services
• Product maintenance and calibration
• Troubleshooting and technical support
• Software and hardware upgrades

Packing and Shipping:

The MIL-DTL-38999 Series Ⅲ product must be packaged and shipped in accordance with the following guidelines:

• The product must be packaged securely in a box or other suitable container.
• The product must be clearly labeled with the customer's name, the manufacturer's name and address, and the part number.
• The product must be shipped via a reputable courier service or postal service.
• The package must be marked with the product name and the words "Fragile - Handle with Care".
• The package must also include a packing list specifying the contents of the package and the customer's contact information.

FAQ:
