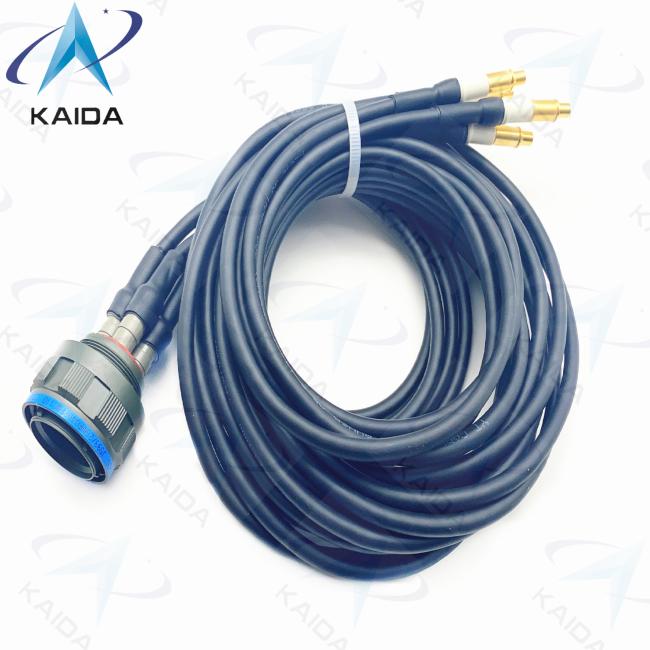

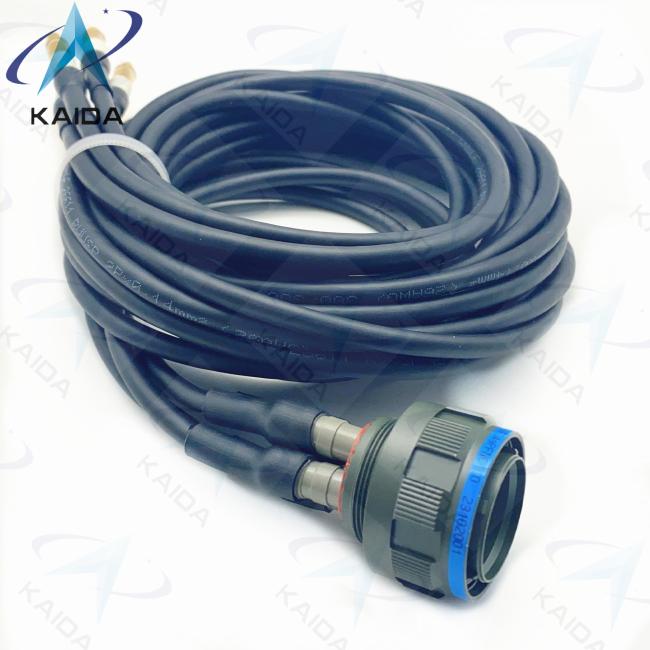

MIL-DTL-38999 Series Ⅲ Plug Connector with Quadrax Male Contact D38999/26WF04PFNC110
Product Description:
MIL-DTL-38999 Series 3 is an advanced -grade plug and socket connector designed for high-reliability applications in harsh environments. It features a coupling type of threaded, a contact type of quadrax male contact, 4 contacts made of copper alloy, and a voltage rating of 500V. It is a cost-effective solution for , aerospace, and other industrial applications due to its high durability, reliable performance, and compact size. MIL-DTL-38999 Series 3 is the perfect choice for applications requiring a robust connection in challenging environments.
Features:
- Product Name: MIL-DTL-38999 Series 3
- Coupling Type: Threaded
- Voltage Rating: 500V
- Connector Type: Plug
- Operating Temperature: -55°C To +125°C
- Current Rating: 7 A
Technical Parameters:
| Connector Type | -Detail 38999 Series Ⅲ Plug |
|---|---|
| Voltage Rating | 500V |
| Contact Type | Quadrax Male Contact |
| Shell Finish | Olive Green Cadmium |
| Operating Temperature | -55°C To +125°C |
| Coupling Type | Threaded |
| Shell Size | 19 |
| Contact Material | Copper Alloy |
| Number of Contacts | 4 |
| Current Rating | 7A |
Applications:
KAIDA’s D38999/26WF04PFNC110 is designed for -Detail-38999 Series Ⅲ and is perfect for a wide variety of applications. It offers Quadrax Female Contact and a Threaded Coupling with a maximum voltage rating of 500V and a superior Olive Green Cadmium shell finish. The product is reliable and durable, making it an ideal choice for demanding environments. It is also easy to install, making it an excellent choice for those looking for a quick and simple installation process. With its high quality and robust design, the KAIDA D38999/26WF04PFNC110 is a great choice for any application.
Customization:
Brand Name: KAIDA
Model Number: D38999/26WF04PFNC110
Place of Origin: China
Operating Temperature: -55°C To +125°C
Contact Type: Quadrax Female Contact
Shell Finish: Olive Green Cadmium
Current Rating: 7 A
Contact Finish: Gold
Support and Services:
MIL-DTL-38999 Series 3 provides technical support and service for its products and components. Technical support is available through the customer service center and telephone assistance, and includes technical advice, troubleshooting, and product maintenance. Service is provided by trained technicians, for repairs, modifications, and upgrades. Customers can also access online resources, such as product documentation, software downloads, and technical bulletins.
Packing and Shipping:
MIL-DTL-38999 Series 3 product packaging and shipping:
The product shall be packaged and shipped in accordance with the following criteria:
- The product shall be packaged and shipped in accordance with MIL-STD-2073-1.
- The product shall be shipped in containers that are of sufficient strength to sustain all normal distribution and handling.
- The product shall be packaged in accordance with MIL-STD-1186.
- The product shall be packaged to protect it from the environment, shock, vibration, and other conditions which may occur during normal shipping and handling.
- The packaging shall be clearly marked with the product part number, the manufacturer's name, and the shipping date.
FAQ:
A1: MIL-DTL-38999 Series 3 is a high performance, environmentally sealed, multi-pin connector system manufactured by KAIDA. The model number is D38999/26WF04PFNC110 and it is made in China.
A2: MIL-DTL-38999 Series 3 has a wide variety of features, including enhanced mechanical and environmental performance, a rugged design, a wide range of contact arrangements, and a variety of shell sizes and finishes.
A3: MIL-DTL-38999 Series 3 has an operating temperature range of -55°C to +125°C.
A4: MIL-DTL-38999 Series 3 has a voltage rating of 500 VAC at sea level.
A5: MIL-DTL-38999 Series 3 has an insulation resistance of 5000 M Ω minimum.
