Hitachi Zaxis 60 Excavator at Discounted Prices: Don't Miss Out!
Used Hitachi zaxis 60 in a Good condition and ready for work
Product introduction
The Hitachi ZAXIS 60 excavator is a robust and reliable machine tailored specifically for the Chinese market. Built on Hitachi's world-renowned technology, this excavator boasts a powerful engine and superior digging capabilities. Here are the key features and specifications of the ZAXIS 60 in a concise 250-word introduction:
Engine and Power
- Equipped with theSUZU CC-4JG1 engine, the ZAXIS 60 boasts a rated power of 40.5KW at 2100 rpm, ensuring ample torque and power for various digging tasks.
Digging Performance
- With a standard bucket capacity of 0.22m³, the ZAXIS 60 achieves maximum digging force, both in the bucket and arm, allowing for efficient earthmoving.
- The E-Mode feature optimizes fuel efficiency while maintaining excellent digging performance, resulting in a 21% improvement in fuel efficiency.
Mobility and Stability
- The ZAXIS 60's compact design and maneuverability allow it to operate in confined spaces, while its robust undercarriage and wide tracks provide stability on uneven terrain.
Comfort and Safety
- The operator's cab is ergonomically designed for maximum comfort, with easy-to-reach controls and a spacious interior.
- Safety features such as anti-rollback and collision prevention systems ensure operator safety during operation.
In summary, the Hitachi ZAXIS 60 excavator offers powerful performance, superior digging capabilities, and excellent maneuverability, making it a versatile choice for a wide range of construction and earthmoving applications.
Technical parameters
| Technical Parameter | Hitachi ZAXIS 60 Specification |
|---|---|
| Operating Weight | 5,850 kg |
| Engine | |
| Engine Brand | 五十铃ISUZU |
| Engine Model | CC-4JG1 |
| Rated Power | 40.5 KW at 2,100 rpm |
| Displacement | 3.059 L |
| Cylinder Count | 4 |
| Cooling System | Water-cooled |
| Hydraulic System | |
| Main Pump Type | Variable piston pump × 2 + Gear pump × 2 |
| Main Relief Pressure | 24.5 Mpa |
| Travel Motor Type | Variable swashplate piston motor × 2 |
| Swing Motor Type | Axial piston motor × 1 |
| Bucket | |
| Bucket Capacity | 0.22 m³ |
| Bucket Digging Force (ISO) | 41.4 kN |
| Arm Digging Force (ISO) | 28.4 kN |
| Performance | |
| Swing Speed | 9.3 rpm |
| Travel Speed (High/Low) | 4.5/2.5 km/h |
| Gradeability | 70% (35°) |
| Ground Clearance | 310 mm |
| Dimensions | |
| Total Length (Transport) | 6,060 mm |
| Total Width (Transport) | 2,060 mm |
| Total Height (Transport) | 2,470 mm |
| Track Width | 2,000 mm |
| Track Length | 2,480 mm |
| Track Shoe Width | 400 mm |
| Operating Range | |
| Maximum Digging Radius | 6,250 mm |
| Maximum Digging Depth | 3,850 mm |
| Maximum Dumping Height | 5,800 mm |
| Maximum Unloading Height | 4,080 mm |
| Fuel Tank Capacity | 120 L |
| Hydraulic Oil Tank Capacity | 61 L (full tank 95 L) |
| Engine Oil Replacement Quantity | 12 L |

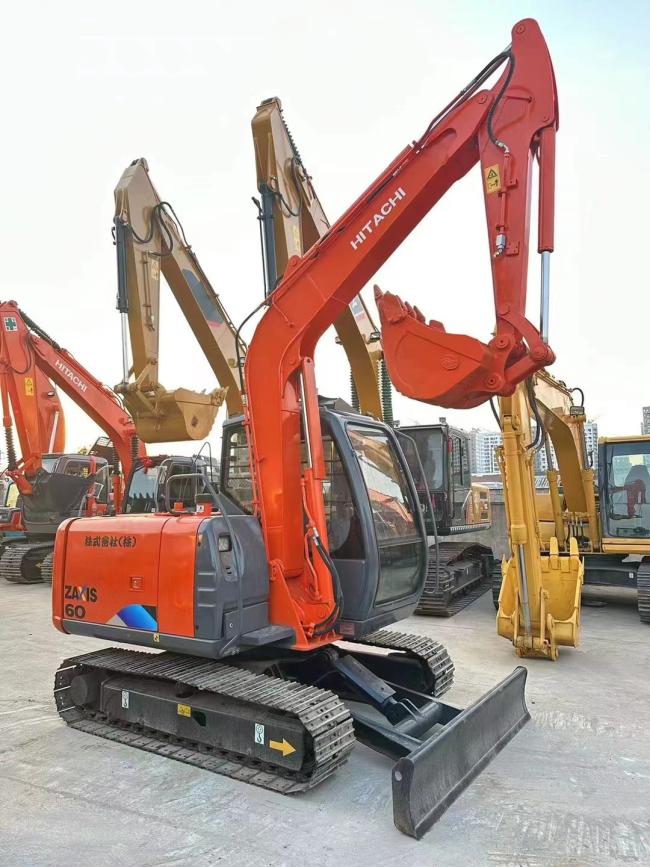

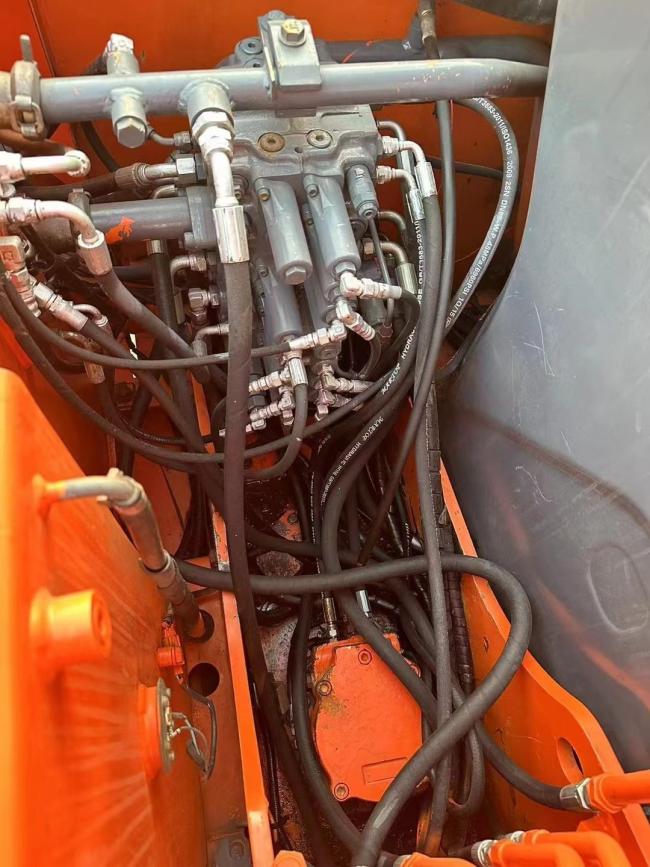

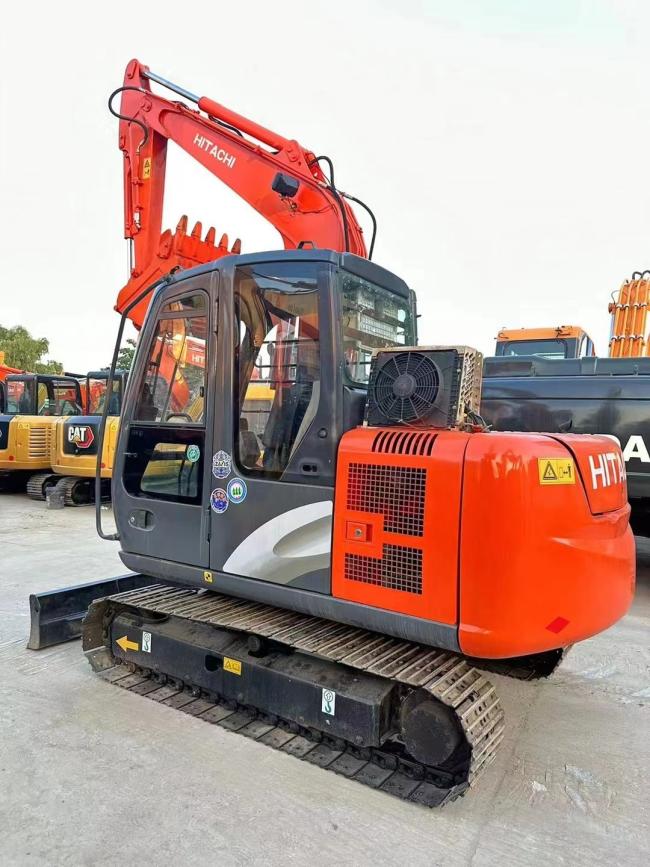

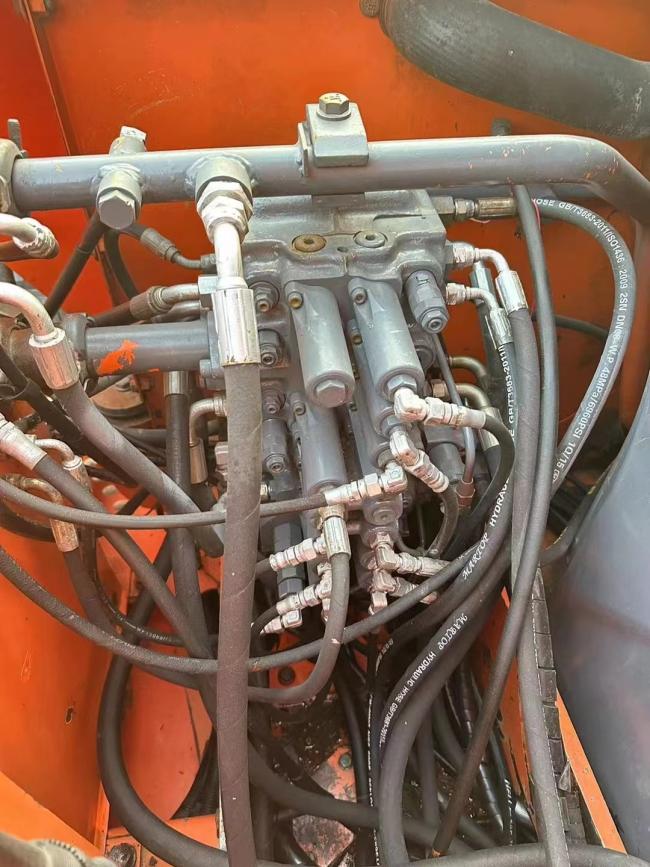

Detailed photos
Why choose us
- Regular maintenance and inspections.
- Troubleshooting and repair services.
- Replacement parts and components.
- Operator training and safety courses.
- Video support and assistance.
For more information about our technical support and service options, please contact us:
Tel: (86) 19117331197
Whats APP: 86 19117331197
Email: shanghaijiaming09@gmail.com
Packing and Shipping
Used excavators are packaged in a safe and protective manner to ensure transportation safety.
Based on the size and weight of the excavator, we use wooden boxes, steel frames, or pallets to package the product.
We use reputable transportation companies, and once the product is shipped, we will provide tracking information.
Our other products and models
| Products | Brand | Model |
| Used Excavator | CAT | 306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi | EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 | |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 | ||
| Komatsu | PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 | |
| Kobelco | SK60,SK75,SK120,SK200,SK260,SK350 | |
| Doosan | DH55,DH60,DH150,DH220,DH225,DH300 | |
| DX55,DX60,DX150,DX220,DX225,DX300 | ||
| Hyundai | 130,150,215,225,305 | |
| Volvo | EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 | |
| Kubota | U15,U17,U30,U35,KX155,KX165 | |
| SANY | 55,60,75,95,135,215,235 | |
| Used Bulldozer | CAT | D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu | D31EX,D65E,D85,D155,D275,D375,D65PX | |
| Shangong | SEM816,SEM818 | |
| Shantui | SD13,SD16,SD22,SD32 | |
| Used Loader | CAT | 938G,966F,966H,966G,950GC,980G |
| Komatsu | WA320,WA380,WA470,WA500,WA600 | |
| XCMG | 50GN | |
| LIiugong | LG856,856H,835,836,862 | |
| Shangong | SEM650,652 | |
| Lingong | LG936,956,958,968 | |
| Used Backhoe Loader | JCB | 3CX,4CX, |
| CASE | 508M,580L,580N | |
| Lingong | 776,777 | |
| Used Motor Grader | CAT | 12G,4G,120G,140G,140K |
| Komatsu | GD511A,GD655 | |
| XCMG | GR180,GR215 | |
| LIiugong | 61,416,141,804,215 | |
| Shangong | 919,921 | |
| Lingong | 9180 | |
| Used Road roller | SANY | STR140,STR160,SSR220A,SSR200A |
| XCMG | CA25/30,XS143/163/183,XS203/223/263 | |
| Liugong | LG614,616,618,620,622,626 | |
| Shantui | SR16,SR18,SR20,SR22 |
FAQ:
-
1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB . CIF
3.How about the delivery time?
Answer: Usually, it takes 5 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
