Second hand Komatsu 220-7 excavator, excavator produced in Japan
Second hand Komatsu 220-7 excavator, excavator produced in Japan
Product introduction
The Komatsu PC220 excavator is a heavy-duty machine designed for efficient earthmoving and construction applications. Here are some key points regarding its introduction:
- Design and Specifications:
- The PC220 belongs to the 23-ton class of tracked excavators, providing ample power and stability for a range of tasks.
- It features a robust design with a high-damping shock absorber seat in the cab, ensuring operator comfort even during rigorous operations.
- With a fuel pre-filter that offers oil-water separation, the PC220 effectively safeguards its engine from impurities.
- Technical Parameters:
- Powered by a six-cylinder engine, the PC220 offers reliable performance with a rated power of 123 kW.
- It boasts a bucket capacity ranging from 1.03 to 1.20 m³, making it suitable for various digging and loading tasks.
- The excavator's operating weight stands at approximately 23,100 kg, while its travel speed (high/low) is 5.5/3.1 km/h.
- Features and Benefits:
- The PC220's parallel-arranged cooling system enhances heat dissipation, ensuring optimal engine performance.
- The cab is designed for durability and impact resistance, providing a safe and secure workspace for operators.
- Easy access to maintenance points like the oil filter and fuel drain valve simplifies routine checks and maintenance.
- Applications:
- The Komatsu PC220 excavator is suitable for a wide range of applications, including construction, mining, road building, and landscaping projects.
Technical parameters
| Technical Parameter | Specification |
|---|---|
| Device Model | PC220 |
| Machine Type | Excavator |
| Tonnage (t) | 23.1 |
| Travel Method | Tracked (履带式) |
| Bucket Type | Backhoe (反铲) |
| Application | General Purpose (通用型) |
| Engine Model | SAA6D107E-1 |
| Engine Type | Water-cooled, 4-stroke, direct injection |
| Rated Power (kW) | 123 |
| Rated Speed (r/min) | 2000 |
| Displacement (L) | 6.69 |
| Number of Cylinders | 6 |
| Bore x Stroke (mm) | 107 x 124 |
| Engine Brand | Komatsu |
| Operating Weight (kg) | 23,100 |
| Bucket Capacity (m³) | 1.03~1.20 |
| Travel Speed (High/Low) (km/h) | 5.5/3.1 |
| Swing Speed (rpm) | 11.7 |
| Gradeability (%) | 70 |
| Bucket Digging Force (kN) | 171.5 |
| Arm Digging Force (kN) | 129.36 |
| Boom Length (mm) | 5850 |
| Arm Length (mm) | 3045 |
| Overall Dimensions (L x W x H, mm) | 9885 x 2980 x 3185 (transport condition) |
| Fuel Tank Capacity (L) | 400 |
| Hydraulic Oil Tank Capacity (L) | 136 |
| Engine Oil Change Volume (L) | 23.1 |
| Main Pump Type | Variable Displacement Axial Piston Pump |
| Maximum Flow Rate of Main Pump (L/min) | 439 |

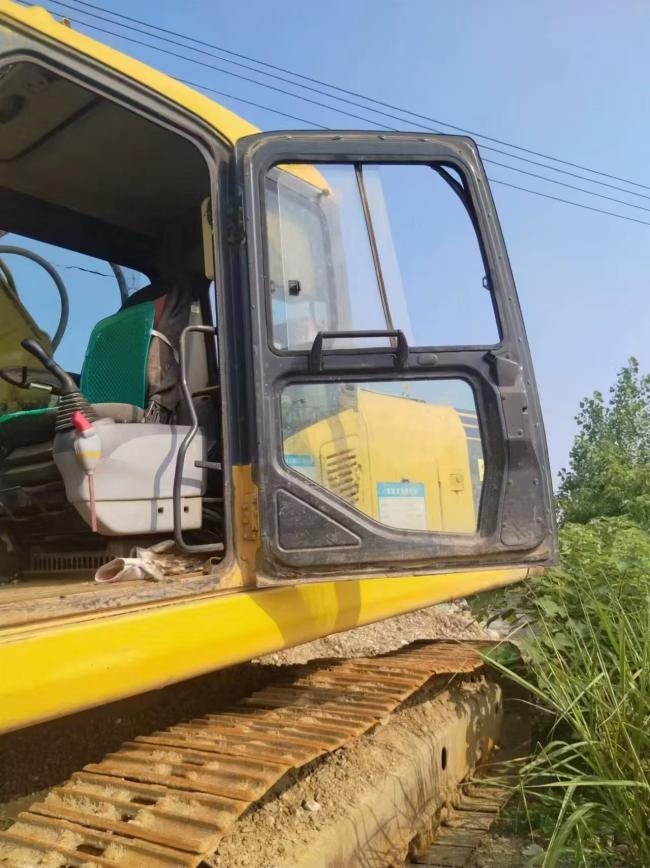

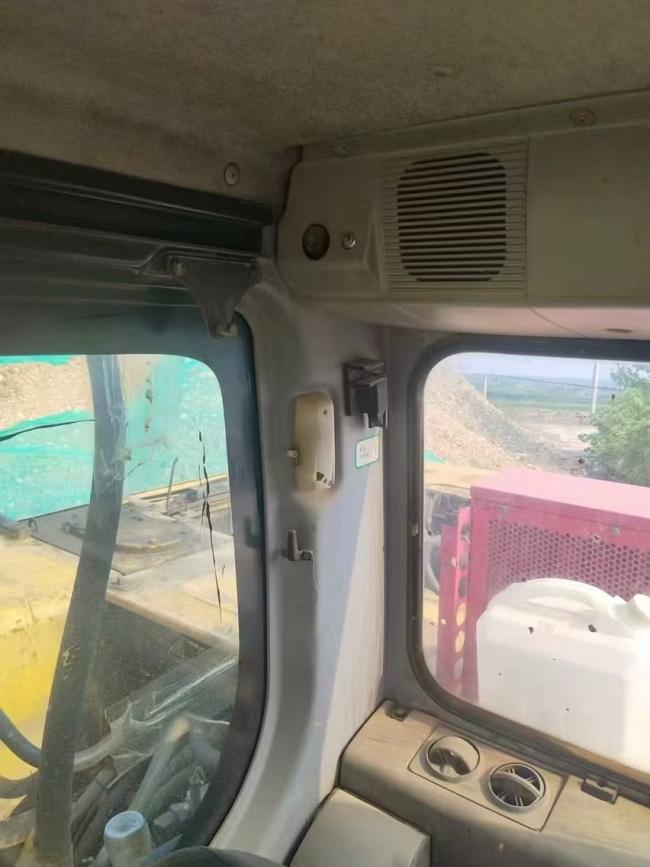

Detailed photos
Why choose us:
- Regular maintenance and inspections.
- Troubleshooting and repair services.
- Replacement parts and components.
- Operator training and safety courses.
- Video support and assistance.
For more information about our technical support and service options, please contact us:
Tel: (86) 19117331197
Whats APP: 86 19117331197
Email: shanghaijiaming09@gmail.com
Packing and Shipping
Used excavators are packaged in a safe and protective manner to ensure transportation safety.
Based on the size and weight of the excavator, we use wooden boxes, steel frames, or pallets to package the product.
We use reputable transportation companies, and once the product is shipped, we will provide tracking information.
Our other products and models
| Products | Brand | Model |
| Used Excavator | CAT | 306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi | EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 | |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 | ||
| Komatsu | PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 | |
| Kobelco | SK60,SK75,SK120,SK200,SK260,SK350 | |
| Doosan | DH55,DH60,DH150,DH220,DH225,DH300 | |
| DX55,DX60,DX150,DX220,DX225,DX300 | ||
| Hyundai | 130,150,215,225,305 | |
| Volvo | EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 | |
| Kubota | U15,U17,U30,U35,KX155,KX165 | |
| SANY | 55,60,75,95,135,215,235 | |
| Used Bulldozer | CAT | D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu | D31EX,D65E,D85,D155,D275,D375,D65PX | |
| Shangong | SEM816,SEM818 | |
| Shantui | SD13,SD16,SD22,SD32 | |
| Used Loader | CAT | 938G,966F,966H,966G,950GC,980G |
| Komatsu | WA320,WA380,WA470,WA500,WA600 | |
| XCMG | 50GN | |
| LIiugong | LG856,856H,835,836,862 | |
| Shangong | SEM650,652 | |
| Lingong | LG936,956,958,968 | |
| Used Backhoe Loader | JCB | 3CX,4CX, |
| CASE | 508M,580L,580N | |
| Lingong | 776,777 | |
| Used Motor Grader | CAT | 12G,4G,120G,140G,140K |
| Komatsu | GD511A,GD655 | |
| XCMG | GR180,GR215 | |
| LIiugong | 61,416,141,804,215 | |
| Shangong | 919,921 | |
| Lingong | 9180 | |
| Used Road roller | SANY | STR140,STR160,SSR220A,SSR200A |
| XCMG | CA25/30,XS143/163/183,XS203/223/263 | |
| Liugong | LG614,616,618,620,622,626 | |
| Shantui | SR16,SR18,SR20,SR22 |
FAQ:
-
1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB . CIF
3.How about the delivery time?
Answer: Usually, it takes 5 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
