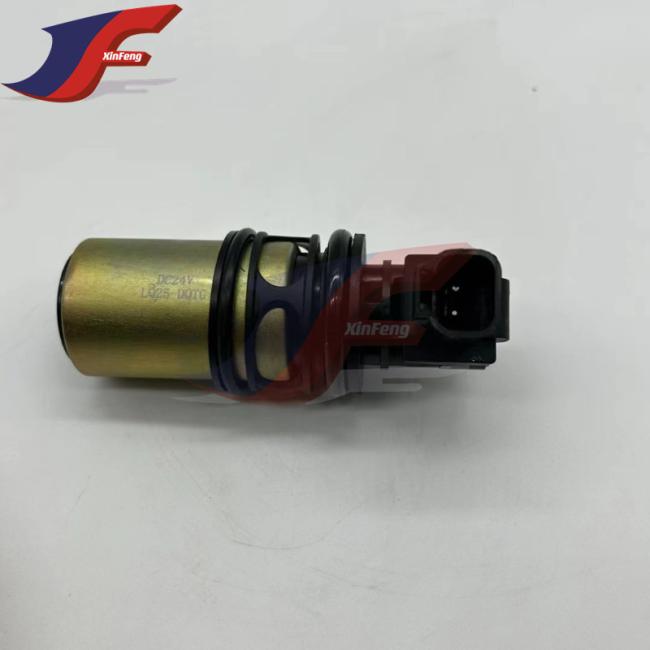

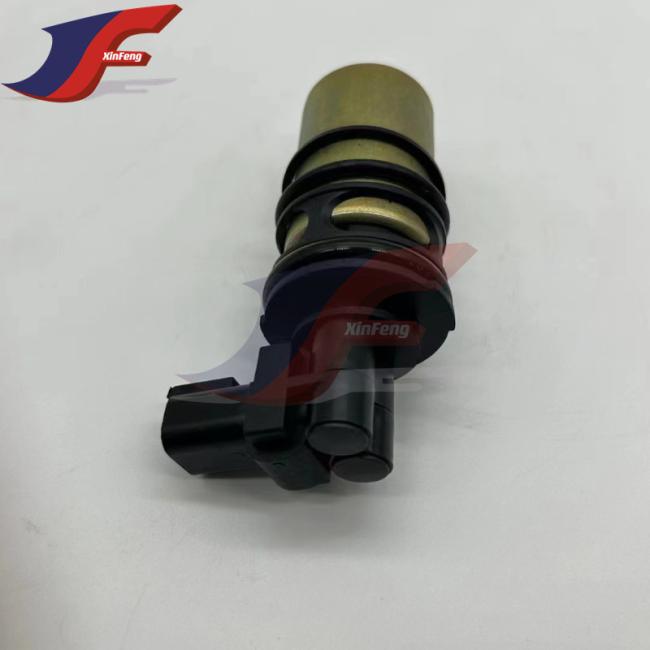

Parts 562-1852 562-1851 526-2037 Electronic Pump For E320GC C7.1
Parts 562-1852 562-1851 526-2037 electronic Pump For E320GC C7.1
320 326 GC 340 330 350 320 GX 333 GC 326 330 GC 336 333 320GX 323 FM568 OTHER 320 GC 330D 336D
Product Descriptio
| SIS | ||||

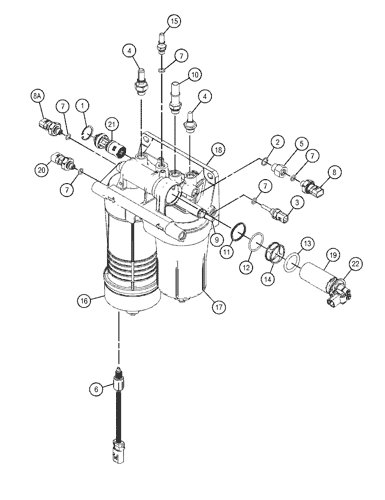

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 199-7560 | [1] | RING-RETAINING | |
| 2 | 228-7102 | [1] | SEAL-O-RING | |
| 3 | 238-0112 | [1] | SENSOR GP-TEMPERATURE (FUEL) | |
| 4 | 361-7347 Y | [2] | CONNECTION GP-FUEL | |
| 5 | 433-4841 | [1] | ADAPTER | |
| 6 | 439-5039 | [1] | SENSOR GP-LIQUID LEVEL (WATER IN FUEL) | |
| 7 | 277-4993 | [5] | SEAL-O-RING | |
| 8 | 320-3060 | [1] | SENSOR GP-PRESSURE (FUEL FILTER OUTLET) | |
| 8A. | 320-3060 | [1] | SENSOR GP-PRESSURE (FUEL FILTER INLET) | |
| 9 | 356-3986 | [1] | CONNECTOR AS | |
| 277-4993 | [1] | SEAL-O-RING | ||
| 10 | 492-9114 | [1] | NIPPLE AS | |
| 228-7102 | [1] | SEAL-O-RING | ||
| 492-9113 | [1] | FITTING | ||
| 11 | J | [1] | SPRING-WAVE | |
| 12 | J | [1] | SEAL-O-RING | |
| 13 | 511-4824 J | [1] | SEAL-O-RING | |
| 14 | J | [1] | SPACER | |
| 15 | 515-6467 | [1] | CONNECTION | |
| 16 | 523-4986 | [1] | HOUSING AS (FUEL, WATER SEPARATOR) | |
| 460-5302 | [1] | KIT-DRAIN (FUEL FILTER, WATER SEPARATOR) | ||
| (INCLUDES DRAIN, KNOB & SEAL) | ||||
| 523-4987 | [1] | ELEMENT-WATER SEPARATOR | ||
| 17 | 523-4988 | [1] | HOUSING AS-FUEL (SECONDARY) | |
| 354-5833 | [1] | KIT-DRAIN (FUEL FILTER) | ||
| 489-7503 | [1] | HOUSING-FUEL FILTER | ||
| 509-5694 | [1] | FILTER ELEMENT-FUEL (SECONDARY) | ||
| 18 | [1] | BASE-FUEL FILTER | ||
| 19 | 526-2037 J | [1] | PUMP AS-FUEL | |
| 20 | 533-2245 | [1] | SENSOR AS-PRESSURE (FUEL, WATER SEPARATOR) | |
| 21 | 539-7999 | [1] | VALVE AS-CHECK | |
| 22 | 6V-7723 | [1] | RING-RETAINING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 562-1852 J | [1] | KIT-PUMP (WATER SEPARATOR)(WATER SEPARATOR) | ||
| (INCLUDES PUMP AS, O-RING SEALS, SPRING & SPACER) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| Y | SEPARATE ILLUSTRATION |
Theory
Excavators usually use electronic pump systems to provide hydraulic power to drive various hydraulic actuators of the excavator, such as digging arms, buckets and walking devices. Here are the basic principles of the electronic pump system:
Motor drive: The core of the electronic pump system is the motor, usually an electric hydraulic pump or an electric hydraulic pump combination. The motor drives the pump to work through electricity to generate hydraulic power.
Hydraulic pump: The hydraulic pump is responsible for converting mechanical energy into hydraulic energy. It generates fluid flow by rotating mechanical elements (such as gears, plungers or blades). The function of the hydraulic pump is to generate sufficient pressure to push the hydraulic oil to various actuators in the hydraulic system.
Hydraulic system: The hydraulic pump transmits hydraulic power to various actuators of the excavator through the hydraulic system. The hydraulic system consists of a hydraulic oil tank, hydraulic pipelines, hydraulic valves and hydraulic cylinders. The hydraulic oil is sucked from the tank, generates pressure through the hydraulic pump, and is transmitted through the pipeline to the hydraulic actuator that needs to perform the work.
Control unit: The electronic pump system is usually equipped with a control unit to monitor and control the operation of the hydraulic system. The control unit can adjust the pump speed and the working pressure of the hydraulic system according to the operator's instructions or preset programs to meet the needs of different working conditions.
Sensors and feedback mechanisms: Electronic pump systems can also be equipped with sensors and feedback mechanisms to monitor the working status of the hydraulic system and the position or load of the actuator. These sensors can provide real-time data to the control unit for operations such as fault diagnosis, performance optimization and safety protection.
In general, the electronic pump system drives the hydraulic system through an electric pump, converts mechanical energy into hydraulic energy, and monitors and controls the hydraulic system through components such as control units and sensors. This can provide efficient, precise and reliable hydraulic power to meet the needs of excavators under various working conditions.
