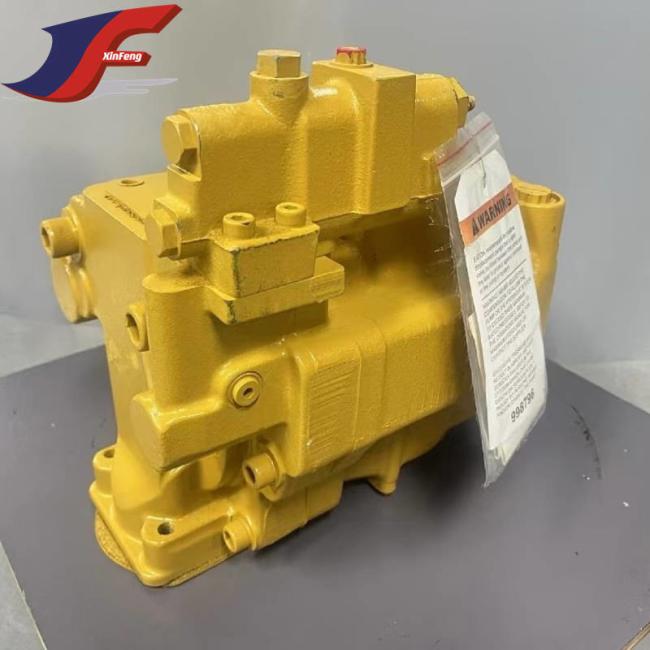

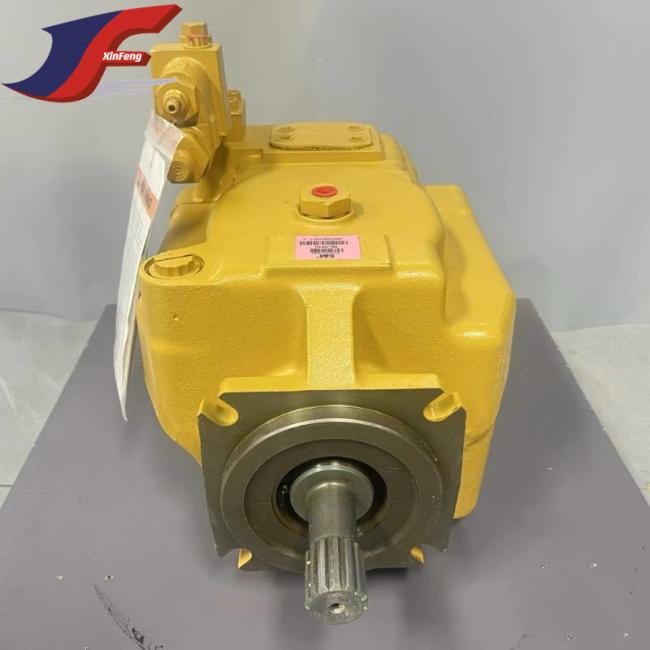

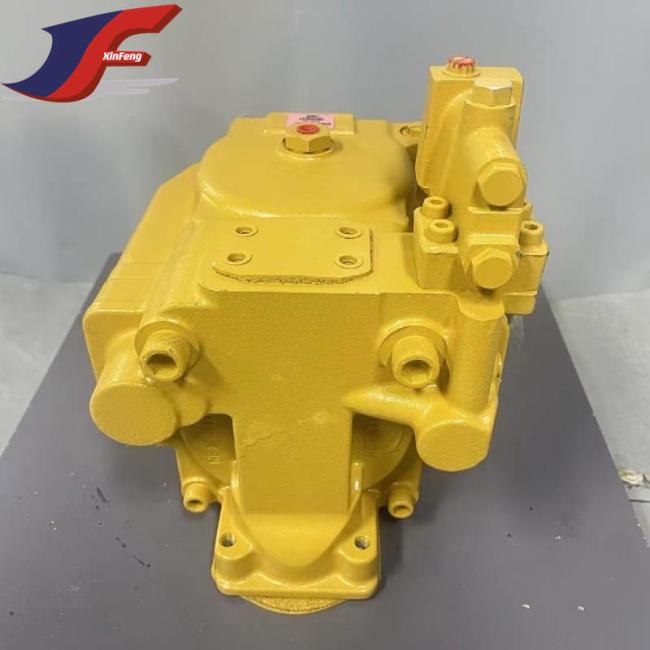

Hydraulic Piston Pump 6E-5650 6E5650 For 789B 789C Truck
Hydraulic Piston Pump 6E-5650 6E5650 for 789B 789C Truck
Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6E-4215 | [1] | KIT-PISTON (STEERING PUMP) | |
| (INCLUDES PISTON, ROD & PACKING) | ||||
| 2 | 6E-4237 | [1] | BEARING | |
| 3 | 6E-4224 | [1] | PLUG-SWASHPLATE | |
| 4 | 033-6036 | [1] | SEAL-O-RING | |
| 5 | 6E-4221 Y | [1] | SWASHPLATE GP | |
| 6 | 9T-1699 | [1] | SPRING | |
| 7 | 9T-1710 | [1] | POPPET | |
| 8 | 9T-1636 | [1] | SEAT | |
| 9 | 6E-4227 | [1] | COVER | |
| 10 | 6V-8837 M | [3] | BOLT (M6X1X16-MM) | |
| 11 | 4F-4097 | [1] | SEAL-O-RING | |
| 12 | 6E-4236 | [1] | BEARING | |
| 13 | 3E-4302 M | [2] | SCREW-FLAT HEAD (M4X0.7X10-MM) | |
| 14 | 6L-8797 | [1] | RING-RETAINING | |
| 15 | 095-0888 | [2] | PIN-SPRING | |
| 16 | 103-6282 B | [1] | SHIM PACK (INCLUDES 17-SHIMS) | |
| 17 | 8T-0343 M | [4] | BOLT-SOCKET HEAD (M12X1.75X55-MM) | |
| 18 | 9S-4190 | [1] | PLUG-O-RING (7/8-14-THD) | |
| 19 | 033-6027 | [1] | SEAL-O-RING | |
| 20 | 100-4181 Y | [1] | VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR)(STEERING PUMP) | |
| 21 | 095-0705 M | [2] | BOLT-SOCKET HEAD (M16X2X100-MM) | |
| 22 | 8T-5039 | [3] | SEAL-O-RING | |
| 23 | 6V-8337 M | [4] | BOLT-SOCKET HEAD (M8X1.25X35-MM) | |
| 24 | 6E-4226 | [1] | HOUSING | |
| 25 | 7K-8876 | [1] | CUP-BEARING | |
| 26 | 6E-4213 | [1] | KIT-BIAS PISTON (STEERING PUMP) | |
| (INCLUDES PISTON, ROD, SPRING & PACKING) | ||||
| 27 | 6E-4214 | [1] | SPRING-BIAS | |
| 28 | 6E-4216 Y | [1] | ROTATING GP-PUMP (STEERING) | |
| 29 | 6E-4225 | [1] | GASKET | |
| 30 | 7L-9061 | [2] | SEAL-O-RING | |
| 31 | 3E-7417 | [2] | PLUG | |
| 32 | 8T-7876 | [2] | SEAL-O-RING | |
| 33 | 6E-4234 | [1] | PLATE-VALVE | |
| 34 | 005-0471 | [1] | CONE-BEARING | |
| 35 | 005-0469 | [1] | CUP-BEARING | |
| 36 | 9X-7547 | [1] | SEAL-LIP TYPE | |
| 37 | 7K-8877 | [1] | CONE-BEARING | |
| 38 | 9T-1652 | [1] | PIN | |
| 39 | 101-0714 | [1] | SHAFT-PUMP | |
| 40 | 101-0715 | [1] | HEAD-PUMP |
Maintainance
It is very important to maintain the Rexroth hydraulic pump to ensure its normal operation and extend its service life. Here are some maintenance suggestions:
Regular inspection
Oil level check:
Check the hydraulic oil level regularly to ensure it is within the normal range.
Oil quality check:
Check the color, odor and impurities of the hydraulic oil and replace it if necessary.
Filter check:
Check and replace the hydraulic oil filter regularly to ensure that the oil circuit is unobstructed.
Cleaning and maintenance
External cleaning:
Clean the pump body and pipeline regularly to prevent dust and impurities from entering the system.
Seal inspection:
Check whether the seal is aged or damaged and replace it in time.
Hydraulic oil replacement
Replace the hydraulic oil according to the recommended cycle in the instruction manual, usually every 1000-2000 hours or once a year.
About Xinfeng Machinery (XF) parts:
Advantages
Warehouse Display
Packaging and Delivery
FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.
2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998
3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.
4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.
6. Which shipping term you can supply?
A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)
7. What is your MOQ?
A: Small order and sample order are acceptable
8. Do you have any After-Sales service?
A: Yes!Our
