Experience Efficiency And Precision With CF-240AI Medical Endoscope For Intestinal Diagnosis And Treatment
Experience Efficiency And Precision With CF-240AI Medical Endoscope For Intestinal Diagnosis And Treatment
1. Function Introduction:
A colonoscope is a fiberoptic endoscope commonly used in clinical practice. It can be inserted retrograde down through the anus to examine the rectum, sigmoid colon, descending colon, transverse colon, ascending colon and cecum, as well as a small section of the small intestine (ileocecal end) connected to the large intestine. It is possible to clearly detect intestinal lesions and also to treat some of them, such as: direct microscopic removal of benign lesions such as colonic polyps, microscopic hemostasis of intestinal bleeding, and removal of foreign bodies in the colon.
2. Parameters Of CF-240AI Colonoscope
-
Model: CF-240AI
-
Field of view: 140゜
-
Outer Diameter: 12.2mm
-
Working length: 1,330mm
-
Total Length: 1,630mm
-
Angulation range: Up 180°
-
Down 180°
-
Right 160°
-
Left 160°
Compatible con/Compatible Of CF-240AI Colonoscope:
-
Olympus CV-240 video processor
-
CLV-U40 light source
-
![]()
Major Structure of Flexible Endoscope
Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.
A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.Four Major Flexible Endoscope Structures

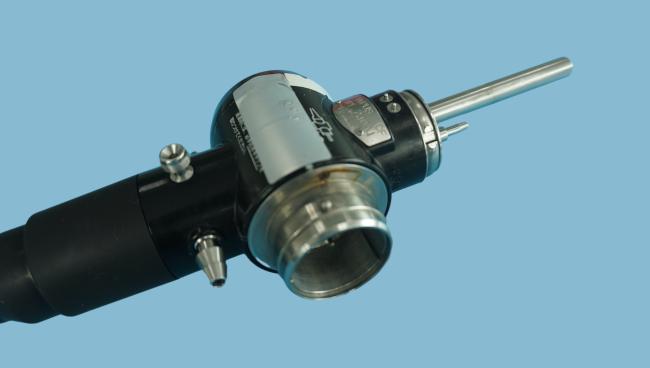

Control body
Insertion tube
Bending section/distal tip
Light guide connector
