Single Point Weighing Measurement Load Cell 30kg-500kg Load Cell To Measure Weight
Product Description:
Single Point Load Cell Made of Aluminum Alloy For Load Weighing Measurement With High Stability 30kg-500kg - WL-118
Made of aluminum alloy, the Single point load cell sensor WL-118 is based on strain gauge technology. The capacity of weight sensor WL-118 ranges from 30kg-500kg. Platform sizes up to 600x600 mm allow for the corner trimming of the single point load cell WL-118, making it appropriate for off-center load measurement.The single point load cell of WL-118 is mostly utilized in industrial automation, food processing, and packaging for weighing and metering purposes. Additionally utilized for production systems including automated checkweighing, platform scales, and intelligent warehousing.The single point load cell WL-118 is the most utilized sensor structure for balances and is widely used in bias load resistance testing.
Custom design service is available to meet requirements of different applications. At BRANS, we understand that every application is unique and requires a tailored solution. Our customized service allows us to modify our product to fit your specific needs, ensuring maximum accuracy and reliability. With our customized service, we aim to provide you with the best possible solution for your unique application.
Features:
- Single point load cells
- Made of aluminum alloy
- 4-wiring cable
- Load cell capacity range from 30kg to 500kg
- Accuracy class: C3, IP65 protection
- With compact design, easy to install
- Off-center load compensated
- Max platform size: 600mm×600mm
- Different cable lengths and other options available
- High stability and high accuracy for weighing applications
Technical Parameters:
| Capacity | 30kg ~ 500kg |
|---|---|
| Rated output |
2.0±0.05mV/V |
| Accuracy class | C3 |
| Combined error | ±0.018%F.S. |
| Zero balance | ±0.2%mV/V |
| Non-linearity | ±0.02%F.S. |
| Hysteresis | ±0.017%F.S. |
| Repeatability | ±0.018%F.S. |
| Input resistance | 380±10Ω |
| Output resistance | 350±5Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15VDC |
| Compensated temp. range | -10~40℃ |
| Operation temp. range | -10~50℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| IP class | IP65 (Customizable) |
| Cable size | Φ5×3000mm (Customizable) |
| Material | Aluminum alloy |
| Nominal displacement | 0.6-0.96mm |
| Max.platform size | 600mm×600mm |

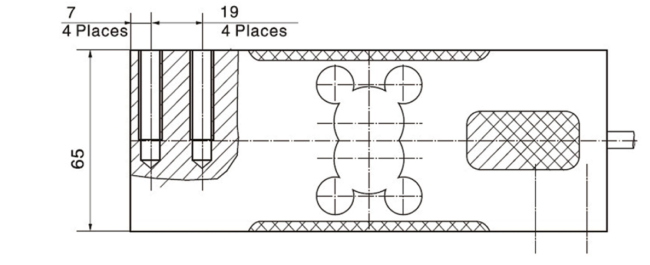

Dimensions (Unit:mm):

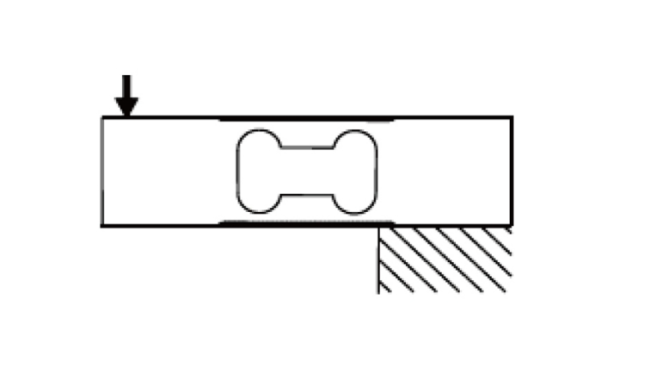

Load direction:
Packing and Shipping:
The Single Point Load Cell will be carefully packaged and shipped to ensure its safe arrival to your location. The packaging process is as follows:
- The load cell will be placed in a sturdy cardboard box to protect it from any external damage during shipping.
- The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving around during transport.
- The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
- Additional layers of bubble wrap may be added for extra protection.
- The box will be securely sealed with tape to prevent any tampering.
- A shipping label with your address and the product information will be affixed to the box.
- The package will be shipped using a reliable and trusted courier service.
Once the package has been shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the shipping address to receive the package to avoid any delays or issues.
