High Precision Signal Transmitter For High Speed Force Measurement -Transmit-H

Product Description:

With an AD acquisition rate of 3960 times/sec and strong anti-interference capabilities, the Transmit-H is a high-speed, high-precision, high-stability signal transmitter that may be used in high-speed force measurement control systems, particularly in the electric car sector.Multiple communication interfaces(RS232,RS485 support Modbus RTU protocol) are available. Additionally, the Transmit-H standard features a 35mm guide rail installation.It is utilized in a number of high-speed force measurement control systems, including the destructive force test of products in the testing machine business and the life test of the accelerator and brake pedals in the automotive sector. More accurate readings or curves can be acquired by using this device to connect to high-speed boards and gather more than 3000 HZ.

Brans are always devoted to deliver satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.To make sure
providing the best solution, the transmitter can be adapted to meet customer requirements.


Features:

1.Communication Interface:RS232, RS485 support Modbus RTU protocol
2.Analog output:0~5V, 0~10V, -5V~+5V, -10V~+ 10V, 0~20 mA, 4-20mA, 0-24mA
3.High-speed weight sorting

4.DIN-rail mounting; friendly man-machine interface
5.Blue lower-power OLED display with resolution of 128*32
6.Driving up to 1-6 load cells(350Ω)
7. 3960times/sec AD acquisition;with strong anti-interference.
8.Various high-speed force measurement control system: the life test of the accelerator pedal and brake pedal in the automotive industry,and the destructive force test of the product in the testing machine industry


Specifications:

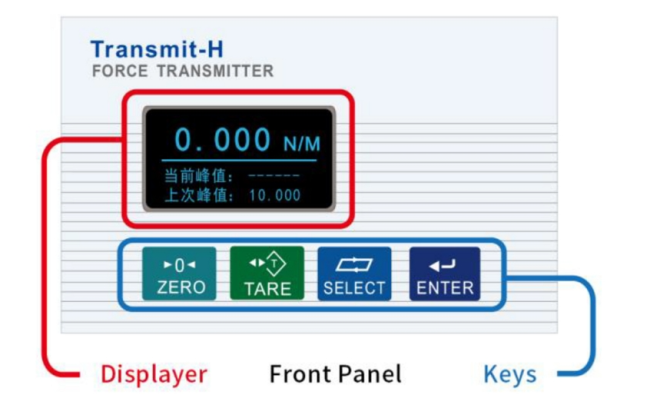

Screen and Keyboard:

Interface:

Dimensions(mm):
