WL-123 Dual Shear Beam Load Cell For Truck / Railroad Scales Stainless Steel / Aluminum
WL-123 Dual Shear Beam Load Cell for Truck/Railroad Scales (Stainless Steel/Aluminum)
Features & Applications
-
Key Features:
-
Dual Shear Beam Structure - Bridge-type design for high-accuracy weighing
-
Premium Material Options - Available in stainless steel or aluminum alloy
-
Floating Bearing Design - Unique self-resetting mechanism
-
Enhanced Durability - Excellent side force and shock resistance
-
Environmental Protection - Moistureproof sealed for harsh conditions
-
-
-
Primary Applications:
Heavy Capacity Weighing Systems
• Electronic truck scales
• Railroad track scales
• Hopper and silo weighing
Industrial Weighing Solutions
• Batch weighing systems
• Process control equipment
• Heavy-duty platform scales
Our Commitment:
At Brans, we pride ourselves on delivering tailored solutions that precisely match our clients' unique requirements. Recognizing that every application has distinct challenges, we offer customizable single point load cell configurations to ensure optimal performance for your specific needs.
Custom Solutions Available:
• Application-specific adaptations
• Modified specifications upon request
• Engineering support for specialized requirements
Specifications:
| Capacity | 10-25/40-50se/50-75/100-125/200K1b |
|---|---|
| Combined Error | ±0.03%F.S |
| Non-linearity | ±0.03%F.S |
| Repeatability | ±0.03%F.S |
| Rated Output | 3.0±0.015mV/V |
| Zero Balance | ≤1.0%mV/V |
| Insulation Resistance | >5000MΩ/100VDC |
| Recommended Excitation | 10~15VDC |
| Material | Alloy Steel/Stainless Steel |
| Operation temp | -20~60°C |
| Safe overload | 150%F.S. |
| IP class | IP67 (Customizable) |
| Cable size | Ф5x3000mm(Customizable) |

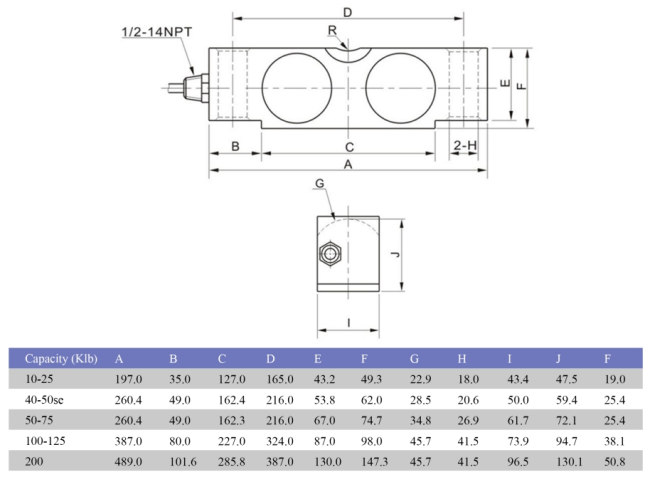

Dimension(MM):

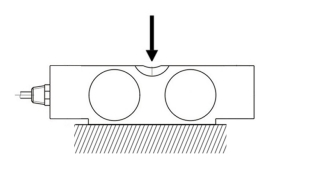

Load Direction:
Wiring:
Load Cell Packaging & Shipping Standards
At Brans, we implement rigorous packaging protocols to guarantee your load cell arrives in perfect condition:
1. Multi-Layer Protective Packaging
• Primary Protection: Each unit is vacuum-sealed in moisture-proof barrier film
• Secondary Cushioning: High-density EPS foam molded to the load cell's contours
• Tertiary Security: Reinforced double-wall corrugated shipping container
2. Advanced Shock Mitigation System
• Multi-axis vibration damping with PE bubble wrap
• Edge protectors for all sensitive components
• "Fragile" and "This Side Up" labeling per ISTA standards
3. Secure Transit Assurance
• Tamper-evident security tape with company logo
• Barcoded shipping labels with QR tracking
• Certified weighing at dispatch for freight verification
4. Premium Logistics Network
• Partnered with DHL/FedEx/UPS for global coverage
• Real-time tracking updates via SMS/email
• 24/7 shipment monitoring by our logistics team
Post-Delivery Protocol:
• Recommended inspection within 48 hours
• Damage claims must include original packaging photos
