WL-147 Heavy-Duty Load Cell: 10-100t Stainless Steel IP68 Sensor for Industrial Weighing
WL-147 Heavy-Duty Load Cell: 10-100t Stainless Steel IP68 Sensor for Industrial Weighing
Features & Applications
Key Features:
-
Heavy-duty compression load cell
-
10-100t capacity range
-
304 stainless steel construction
-
IP68 waterproof protection
-
Built-in self-alignment
-
Anti-rotation design
-
-
-
Applications:
-
Truck scale systems
-
Vehicle test benches
-
Industrial platform scales
-
Hazardous location weighing
-
Bulk material handling
Our Commitment:
At Brans, we pride ourselves on delivering tailored solutions that precisely match our clients' unique requirements. Recognizing that every application has distinct challenges, we offer customizable single point load cell configurations to ensure optimal performance for your specific needs.
Custom Solutions Available:
• Application-specific adaptations
• Modified specifications upon request
• Engineering support for specialized requirements
Specifications:
| Capacity | 10/15/20/30/40/50/60/100t |
|---|---|
| Combined Error | 0.02%F.S. |
| Non-linearity | 0.02%F.S. |
| Repeatability | 0.02%F.S.. |
| Rated Output | 2.0±0.002mV/V |
| Zero Balance | ±1%F.S. |
| Insulation Resistance | >5000MΩ/100VDC |
| Recommended Excitation | 5~18VDC |
| Material | Stainless Steel |
| Operation temp | -35~65°C |
| Safe overload | 150%F.S. |
| IP class | IP68 (Customizable) |
| Cable size | Ф5.6x12m(10-30t,Ф5.6x18m(30t),Ф5.6x20m(40-100t) |

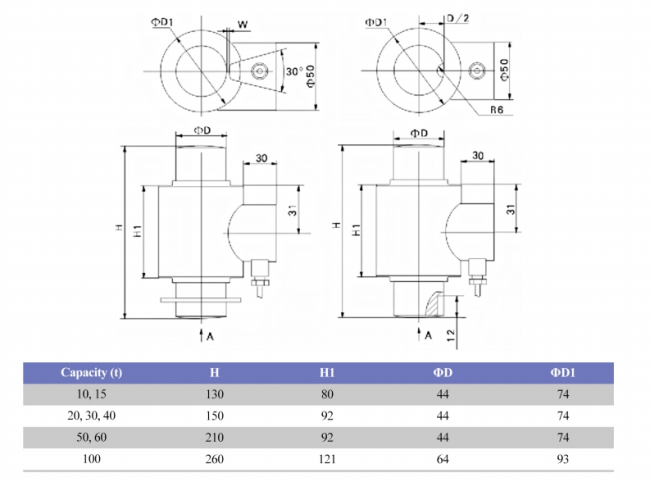

Dimension(MM):
Load Direction:
Wiring:
