Shear Beam Load Cell WL-124 Alloy Steel Capacity 50-300kg For Various Industrial Weighing System
Features & Applications

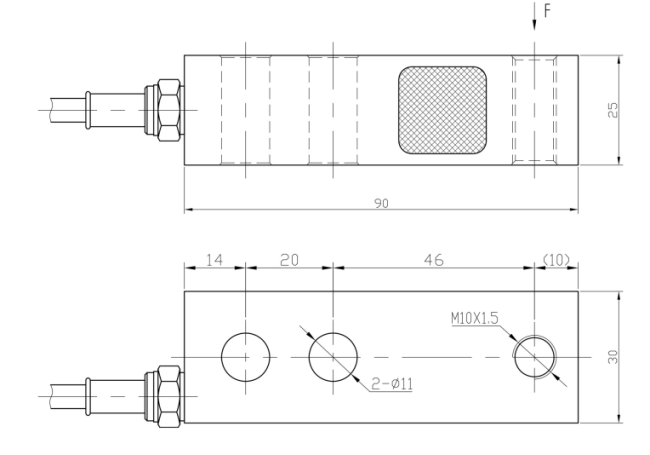

Dimensions(mm)
Specifications
| Capacity | 50~300kg |
| Combined Error | ≤0.05%F.S |
| Non-linearity | ≤0.05%F.S |
| Repeatability | ≤0.02%F.S |
| Rated Output | 2.0±0.01mV/V |
| Zero Balance | ±1.00%mV/V |
| Insulation Resistance | ≧5000MΩ/100VDC |
| Recommended Excitation | 10~15VDC |
| Material | Alloy Steel |
| Safe Overload | 150%F.S. |
| Protection Class | IP66(Customizable) |
| Operation Temp. | -10~50°C |
| Cable Size | Ф5.4x6000mm(Customizable) |
Load direction
Wiring code
Shipping & Packaging
To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.
Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
