Features & Applications

• 1. The WL-119 features a compact Side Mounted Single Point Load Cell, constructed from high-grade aluminum alloy for strength and stability.

  2. This versatile single point load cell supports a capacity range of 1kg to 30kg, ideal for medium-duty precision applications.

  3. With a maximum platform size of 200 x 200 mm, this space-saving load cell is perfect for compact machinery integration.

  4. Designed with a robust yet compact structure, this side-mounted load cell supports reliable dynamic weighing.

  5. Available in three different dimensions, this adaptable single-point load cell is suitable for various applications, including food packaging machines, electronic scales, and auto filling machines.




Specifications

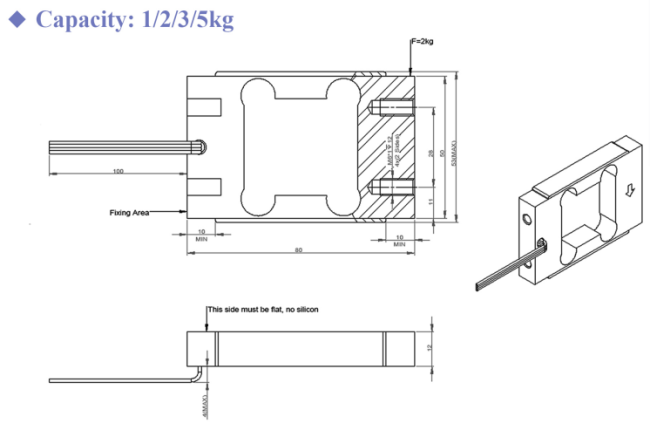

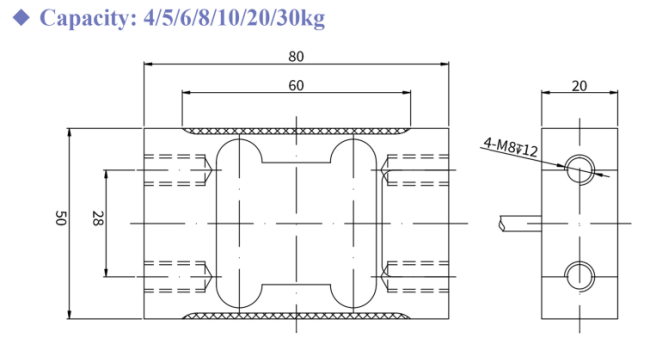

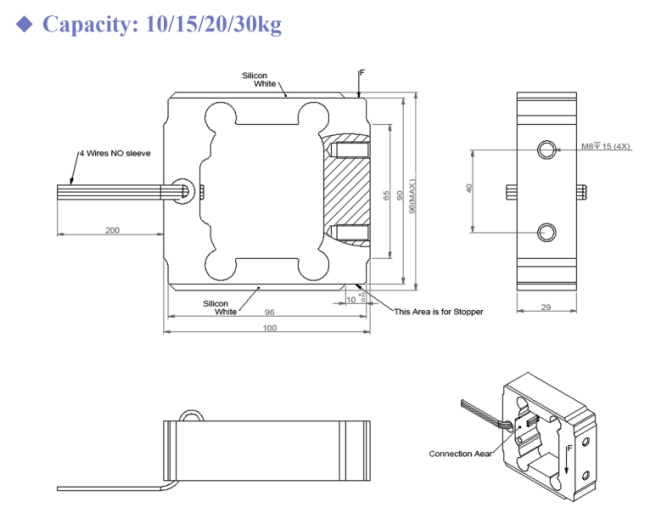

Dimensions(mm)

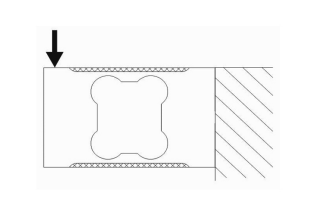

Load direction

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
