Features & Applications

• 1. The WL-122M employs a durable Single Point Load Cell manufactured from high-grade stainless steel for demanding environments.

  2. This versatile single point load cell offers a wide capacity range from 10kg to 600kg, suitable for diverse industrial weighing tasks.

  3. Engineered for precision, this load cell features compensated off-center load error, ensuring consistent and accurate measurement.

  4. Designed for applications requiring a broad weighing area, this single-point load cell supports a maximum platform size of 800*800mm.

  5. This reliable single point load cell is mainly used in specialized sectors such as food, beverage, and pharmaceuticals, as well as in belt scales, platform scales, and other electronic weighing devices.




Specifications

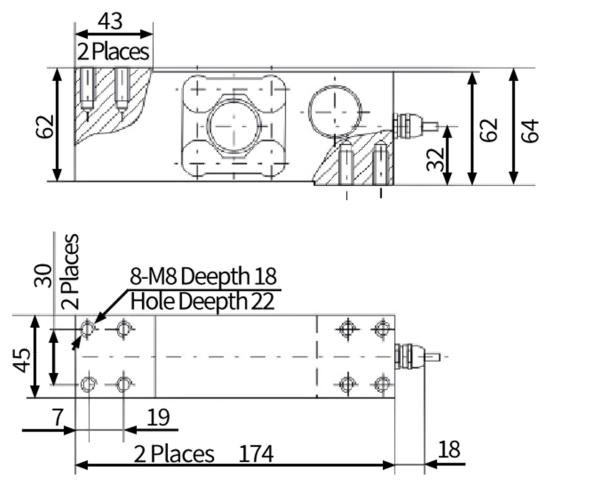

Dimensions(mm)

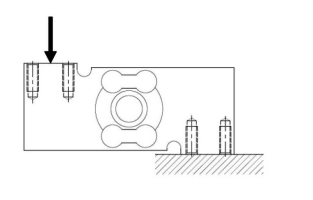

Load direction

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
