MK01 High-Accuracy Weighing Module Stainless Steel 5-500kg Capacity IP68 Sealed Sensor Module For Harsh Industrial Environments

Features & Applications

• 1. The MK01 Weighing Module incorporates a hermetically sealed stainless steel load cell with IP68 protection for reliable use in harsh environments.

  2. Featuring a spherical joint connection, the Weighing Module ensures consistent vertical weighing alignment under varying conditions.

  3. An internal support bolt prevents tilting, making installation of this Weighing Module simple, fast, and secure.

  4. Designed for easy maintenance, the Weighing Module helps reduce downtime and operational costs.

  5. The Weighing Module supports a wide capacity range from 5kg to 500kg, making it suitable for diverse weighing applications.

  6. Built with high accuracy (0.018% F.S.) and stable signal output, the Weighing Module delivers precise and reliable measurement results.

  7. The Weighing Module operates effectively in temperatures from -30°C to 70°C and offers a safe overload capacity of 150% F.S.

  8. MK01 Weighing Modules are ideal for industries requiring durable, low-maintenance, and highly accurate weighing solutions.







Specifications

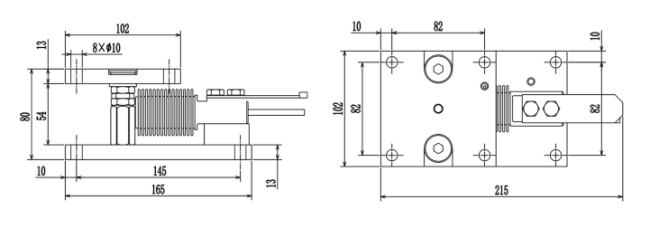

Dimensions(mm)

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
