SAL-109 Low Temperature CO Shift Catalyst

SAL-109 Low Temperature CO Shift Catalyst

Description

Model:SAL-109

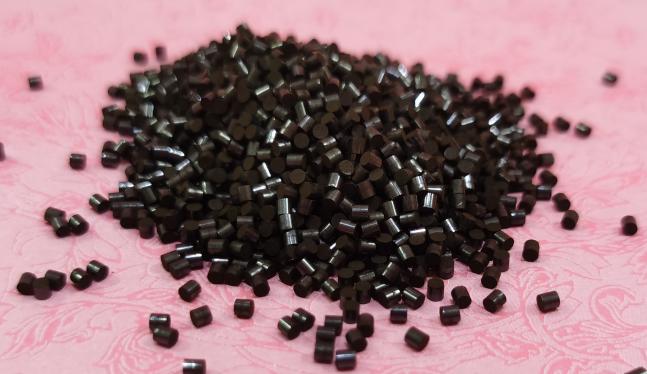

Low temperature CO shift catalyst SAL-109 is suitable for the system of ammonia, methanol, hydrogen plant of CO shift reaction, which use different raw materials such as natural gas, coke oven gas, oil field gas, naphtha and so on. The CO reacts with water vapor to produce H2 and CO2.

The main reaction is as follows:

CO+H₂O(g)→ CO₂+H₂ +41.19 KJ/mol

Industrial Applications

The catalyst is suitable for the system of ammonia, methanol, hydrogen plant using natural gas and coke oven gas;

The catalyst is suitable for the hydrogen plant using catalytic dry gas and coking dry gas;

The catalyst is suitable for methanol synthesis and ammonia plant using oil field gas, refinery gas and naphtha;

The catalyst is suitable for CO in coal synthesis gas purification device.(Requires the total sulfur content is less than 0.5ppm.)

Physical and Chemical Properties

Operation Conditions

S content in feed gas: ≤0.5 ppm

Cl- content in feed gas: ≤0.03 ppm

Steam/feed gas: 0.3~0.6

Operation temperature: 170~260℃

Operation pressure: ≤5.0MPa

Operation space velocity: ≤3000 h-1(dry gas)

Product Advantages

Smaller shrinkage: does not decrease after the reduction;

Better active components dispersing and higher conversion rate: the conversion can reach above 93% under normal process conditions;

Better anti-poison performance for some high-sulfur condition,can’t be poisoned or lose activity in a short time;

By adding of new auxiliaries, by-products will be less,thus saving utilities and production cost.
