SAL-113 Medium-pressure Methanol Synthesis Catalyst

SAL-113 Medium-pressure Methanol Synthesis Catalyst

Description

Model:SAL-113

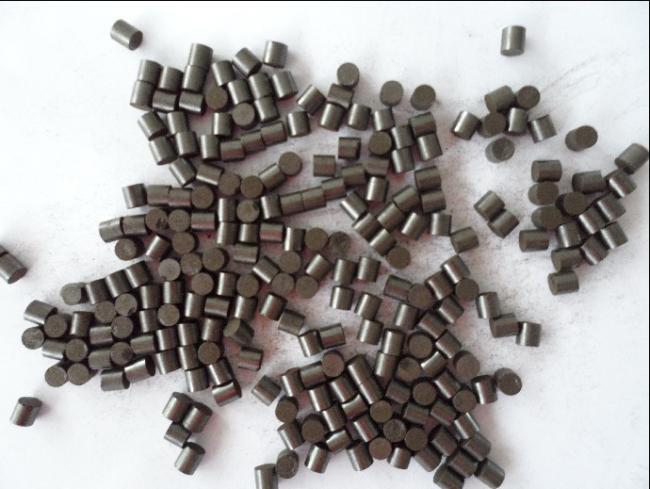

The Medium-pressure Methanol Synthesis Catalyst SAL-113 is a kind of Cu-Zn-Al based methanol synthesis catalyst for using coal, oil field gas, refinery gas, coke oven gas, naphtha, natural gas or oil as it’s feedstock. The synthesis plant pressure is8 ~ 15Mpa. The catalyst is mainly used for the synthesis of ammonia co-methanol plant.

The main reactions are as follows:

CO + 2H2→ CH3OH + 90.69 KJ/mol

CO2 + 3H2→ CH3OH+H2O + 49.53 KJ/mol

Physical and Chemical Properties

Operation Conditions

Operation temperature: 210 ~ 320℃

Operation pressure: 8 ~ 15Mpa

Space velocity: 7000 ~ 20000h^-1

CO conversion rate: ≥ 85%

Product Advantages

Good activity at low temperature, easier to reaching heat balance;

Good thermal stability and good selectivity;

Less by-products;

High strength, saving energy and long service life.
