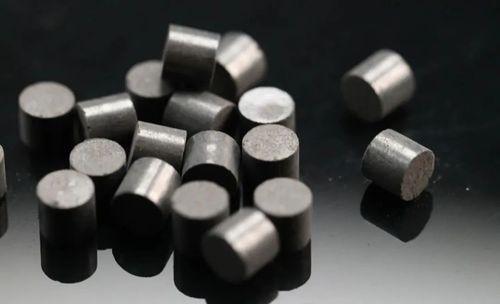

SAL-120 Methanol Steam Reforming Catalyst

Description

Model:SAL-120

Methanol steam reforming catalyst SAL-120 is mainly used in the reforming and cracking reaction between Methanol and steam to convert into H₂, CO₂ and some CO and CH₄, from which we can get needed product—H2.It is used in lots of hydrogen plants in different industries, such as refinery, pharmaceutical and metallurgy.

The main reactions are as following:

CH₃OH+H₂O(g)→CO₂+3H₂ －49.5 KJ/mol

CH₃OH→CO+2H₂ －90.7 KJ/m

CO+H₂O(g)→CO₂+H₂ +41.19 KJ/mol

Industrial Applications

The catalyst is suitable for the hydrogen production by the reaction between Methanol and steam;

The catalyst is suitable for the methanol fuel cell for vehicles.

Physical and Chemical Properties

Operation Conditions

S content in feed gas: ≤0.1ppm

Cl content in feed gas: ≤1ppm

Operation space velocity:≤1.2h-1

Operation pressure: ≤5MPa

Operation temperature: 220~290℃

Product Advantages

High single-pass conversion rate: the initial methanol in washing tower is 0 and at end is less than 5%;

Lower reaction temperature and saving the quantity of oil and extending the oil life;

Less side-reaction, not easy to produce wax, lower of methane, methyl ether and carbon monoxide in the out gas;

High strength, good water resistance, uneasy to powder and low running resistance.
