Fall Resistant Rental LED Display Screen Shockproof Waterproof Outdoor LED Video Wall Panel
LED rental RH-A 500*500 fall resistant shockproof and waterproof led display screen
Detailed product introduction document:
Applicable scenarios:
1. stage performance
2. exhibition hall
3. Advertising activities
4. training and airport
5. trade show
6.LIVE HOUSE
Features:
1. Perfect enjoyment of high-definition display: 16Bits high grayscale, high refresh rate above 1920, no flicker during live switching;
2. Ultra-thin cabinet, the whole cabinet is made of aluminum alloy or magnesium alloy material, Faster and easier installation
3. Fast, simple and convenient: multi-functional link, more stable, convenient and safe;
4. Convenient Mix & Match: The H500/H1000 module is universal,can splice and display in diversity.
5. Adopt lightweight design concept, cabinet, module, power supply modular design, quick installation. 500x500mm short cabinet with high flexibility
Product Details
Models:RH-A
| Rental LED display screen (RH-A series) | ||||
| Models | RH-A 2.604 | RH-A 2.976 | RH-A 3.91 | RH-A 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 4000 | 4500 | 4500 | 4500 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 100,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 14bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 600W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | IP30 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||

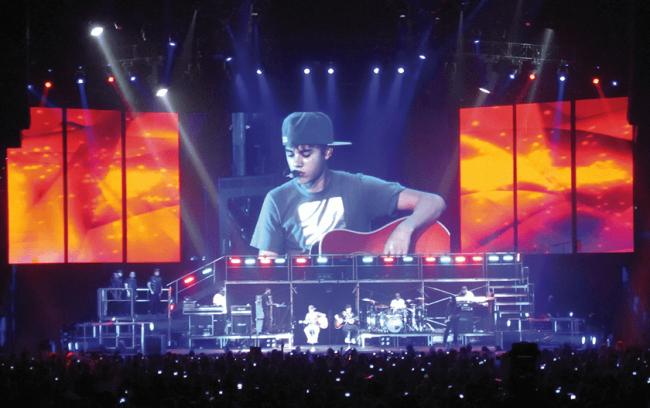

Application:
FAQ:
Q1:When will you make the delivery?
A1.We can make the delivery within 7-35 working days .
Q2 : What is the maintenance method for the product
A : front and rear maintenance
Q3 : Can I have a sample order for led screen?
A : Yes, we welcome sample order to test and check quality.
