TRA-B PH5-10 Indoor Full Color Transparent LED Screen Display 1000mm*1000mm

Price Negotiable
Price: $286.00/square meters
MOQ: >=1 square meters
Delivery Time: 7-35 work days
Brand: Highmight
Product Description

1000mm*1000mm TRA-B PH5-10 Indoor Full Color LED Transparent Display Screen



Detailed product introduction document:



Applicable scenarios :

1. commercial real estate

2. entertainment culture Restaurant

3. stage performance and Architecture Art

4. radio and television studios

5. commercial exhibition hall



Features:

1. Light, thin and ultra-clear, unlimited splicing: the lamp plate thickness is only 3.5mm, 7kg/㎡ ultra-light box, unlimited splicing combination display;

2. More than 65% ultra-high permeability: the playback image presents a floating style, which will not affect the view of the building when it is daylighting;

3. Front and rear maintenance, convenient and fast: the module and power box can be disassembled and maintained in front and back, and the installation and maintenance are convenient and fast;

4. Energy conservation and environmental protection: compared with other LED display products, the power consumption is reduced to 50% - 65%, and the average power consumption is only 400W/㎡.





Product Details

Models: TRA-B

Indoor transparent screen (TRA-B  series)
models PH 2-5 PH 3-7 PH 5-10 PH 10-10 PH 15-15
Pixel Pitch (mm)  2.6- 5.2  3.91 - 7.82  5.2 - 10.4 10.4 - 10.4 15.6  - 15.6
transparency 56% 76% 76% 76% 80%
Pixel Density  (dot/㎡) 73728 32768 18432 9216 4096
Cabinet pixel 384X192 256X128 192X96 96X96 64X64
Refresh rate (Hz) 1920 1920 1920 1920 1920
Drive chip

ICN2038S

(same level)

ICN2038S (same level) ICN2038S (same level) ICN2038S (same level) ICN2038S (same level)
Scan mode 1/12 Scan 1/16 Scan 1/4 Scan 1/4 Scan 1/2 Scan
LED lamp bead model SMD1515 SMD2121 SMD2121 SMD2727 SMD2727
 Brightness (cd/㎡) ≥800
Lifespan(H) ≥ 100,000 hours
Pixel composition RGB three-in-one
Grey scale 14bit
Maximum power (W/㎡) 600-800W
Conventional power (W/㎡) 400-600W
LED control system Nova / Colorlight System / Magnimade System / Mooncell System
Signal connection mode WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Protection Grade IP30
Eliminate Shadows equipment
input voltage AC100~240V 50/60HZ
Module input voltage DC4.7~5V±0.2V
Cabinet size (mm) 1000X1000X80
Weight (Kg/㎡) 7.5kg/㎡
Cabinet material aluminium alloy
Maintenance

power/Control System : rear maintenance

module:front maintenance

Working temperature and humidity Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation.
Installation mode hoisting/fixed installation/Build on standing structure

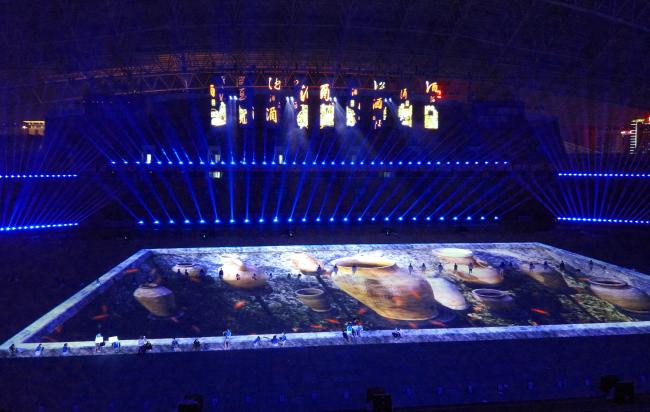

Application:





FQA:

Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.



Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.



Q3: What can you buy from us?

A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.



Q4: Can I have a sample order for led screen?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q5: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen. Welcome to visit our factory anytime at your convenience.
