Indoor TRA-B 15-15 Transparent LED Screen Display 3D Advertising Screen Dual Maintenance Way

Price Negotiable
Price: Customized price
MOQ: >=1 pieces
Delivery Time: 7-35 work days
Brand: Highmight
Product Description

1000mm*1000mm TRA-B PH5-10 Indoor Full Color LED Transparent Display Screen

Detailed product introduction document:

Applicable scenarios :

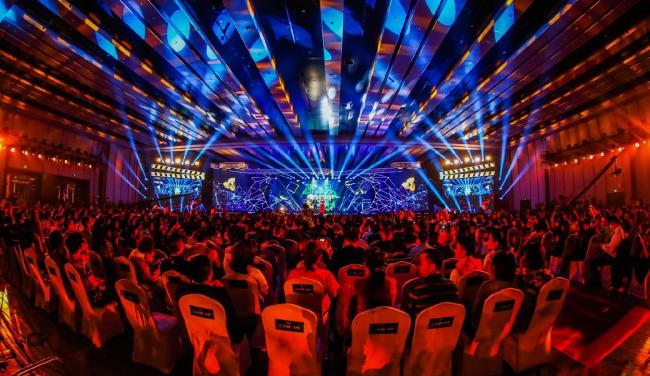

1. Floor and Ceiling Display and Media Advertising
2. entertainment culture Restaurant
3. commercial real estate
4. radio and television studios
5. commercial exhibition hall

Features:
1. high permeability , IP65 dustproof and waterproof
2. IP65 dustproof and waterproof
3. Convenient installation method, convenient and fast: The cabinet adopts a quick-lock structure design, which makes installation convenient and fast;
4. High refresh rate and gray scale ensures the picture quality remains seamless.
5. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65;
6. Ultra high definition video effect with see-through high transparent rate

Product Details
Models: TRA-B

Indoor transparent screen (TRA-B series)
modelsPH 2-5PH 3-7PH 5-10PH 10-10PH 15-15
Pixel Pitch (mm)2.6- 5.23.91 - 7.825.2 - 10.410.4 - 10.415.6 - 15.6
transparency56%76%76%76%80%
Pixel Density (dot/㎡)73728327681843292164096
Cabinet pixel384X192256X128192X9696X9664X64
Refresh rate (Hz)19201920192019201920
Drive chip

ICN2038S
(same level)

ICN2038S (same level)ICN2038S (same level)ICN2038S (same level)ICN2038S (same level)
Scan mode1/12 Scan1/16 Scan1/4 Scan1/4 Scan1/2 Scan
LED lamp bead modelSMD1515SMD2121SMD2121SMD2727SMD2727
Brightness (cd/㎡)≥800
Lifespan(H)≥ 100,000 hours
Pixel compositionRGB three-in-one
Grey scale14bit
Maximum power (W/㎡)600-800W
Conventional power (W/㎡)400-600W
LED control systemNova / Colorlight System / Magnimade System / Mooncell System
Signal connection modeWiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Protection GradeIP30
Eliminate Shadowsequipment
input voltageAC100~240V 50/60HZ
Module input voltageDC4.7~5V±0.2V
Cabinet size (mm)1000X1000X80
Weight (Kg/㎡)7.5kg/㎡
Cabinet materialaluminium alloy
Maintenance

power/Control System : rear maintenance
module:front maintenance

Working temperature and humidityTemperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation.
Installation modehoisting/fixed installation/Build on standing structure



Applicable:

FQA:
Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.

Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
