PH10-10 Waterproof See Through Led Screen Full Color LED Wall Screen Display Outdoor
PH10-10 Waterproof See Through Led Screen full color Transparent LED Screen Display
Detailed product introduction document:
Applicable scenarios:
1. stage performance
2. glass curtain wall
3. 4S Auto Shop
4. shopping mall and office building
5. exhibition hall
Features:
1. Transparent and invisible, see the shadow but not the screen
2. IP65 dustproof and waterproof
3. Clear picture without flicker and distortion.No light leakage trouble
4. high contrast and wide viewing angle
5. High refresh rate and gray scale ensures the picture quality remains seamless
6. Providing excellent customer service and technical support
7. fast assembling
Product Details
Models: TWC-F PH10-10
| Pixel Pitch (mm) | 10.4-10.4 | Conventional Power (W/㎡) | 400-600W |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |
| Pixel Density (dot/㎡) | 9216 | Transparency | 60% |
| Cabinet Pixel | 96X96 | Protection Grade | IP65 |
| Refresh Rate (HZ) | 3840Hz | Eliminate Shadows | Equipment |
| Driver Chip | MY9866(same level) | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/2 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD2727 | Cabinet Size (mm) | 1000X500X80 |
| Brightness (cd/㎡) | ≥4500 | Weight (kg/㎡) | 12kg/㎡ |
| Lifespan (hours) | ≥100,000H | Cabinet Material | Die-casting Alumimum |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Maintenance |
power/Control System : rear maintenance module:front maintenance |
| LED Composition | RGB three in one | Gray Scale | 14bit |
| Maximum Power (W/㎡) | 600-800W | Installation | hoisting/fixed installation/Build on standing structure |

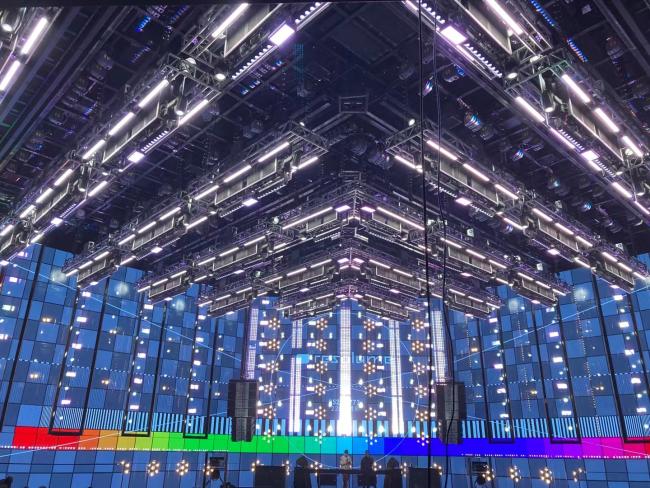

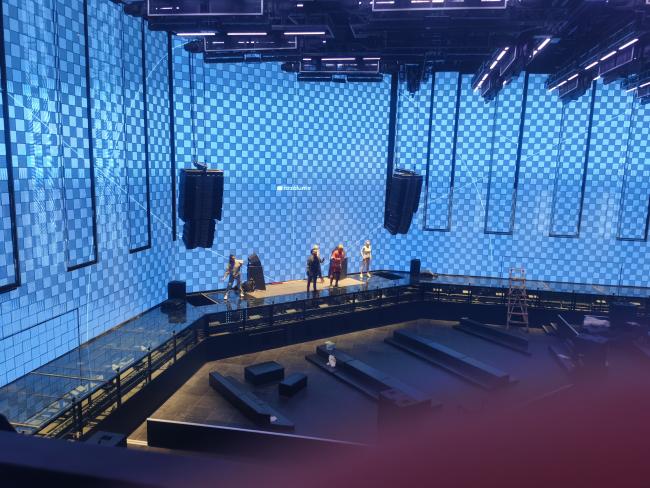

Application:
FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
