500mm*1000mm PH3-7 outdoor Full Color high brightness LED Transparent Display Screen
500mm*1000mm PH3-7 outdoor Full Color high brightness LED Transparent Display Screen
Detailed product introduction document:
Applicable scenarios :
1. store window
2. glass curtain wall
3. brand chain store
4. municipal public building
5. exhibition hall etc.
Features:
1. Unique encapsulation and potting technology: sealing and potting technology, which not only protects the lamp beads, but also plays a waterproof effect, and the waterproof level is as high as IP65 protection level;
2. Support front and rear maintenance to reduce maintenance costs: the playback screen presents a suspended style, which will not affect the vision of the building when it is lit
3. Convenient installation method, convenient and fast: the box body is designed with a quick lock structure, which is convenient and fast to install;
4. Hollow design: while ensuring permeability, it reduces the weight of the screen itself and automatically dissipates heat.
Product Details
Models:TWC-F 3-7
|
Pixel Pitch (mm) |
3.91-7.82 |
Conventional Power (W/㎡) |
400-600W |
|
Signal Connection |
WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system |
Control System |
Nova / Colorlight System / Magnimade System / Mooncell System |
|
Pixel Density (dot/㎡) |
32768 |
Transparency |
56% |
|
Cabinet Pixel |
256X128 |
Protection Grade |
IP65 |
|
Refresh Rate (HZ) |
3840Hz |
Eliminate Shadows |
Equipment |
|
Driver Chip |
ICN2153PWM(same level) |
Input Voltage |
AC100～240V 50/60HZ |
|
Scan Mode |
1/8 Scan |
Module Input Voltage |
DC4.7～5V±0.2V |
|
Lamp Type |
SMD1921 |
Cabinet Size (mm) |
1000X500X80 |
|
Brightness (cd/㎡) |
≥4500 |
Weight (kg/㎡) |
12kg/㎡ |
|
Lifespan (hours) |
≥100,000H |
Cabinet Material |
Aluminum Alloy |
|
Working Temperature and Humidity |
Temperature:-10～40℃ Humidity:10％-90％ |
Maintenance |
power/Control System : rear maintenance module:front maintenance |
|
LED Composition |
RGB three in one |
Gray Scale |
14bit |
|
Maximum Power (W/㎡) |
600-800W |
Installation |
hoisting/fixed installation/Build on standing structure |

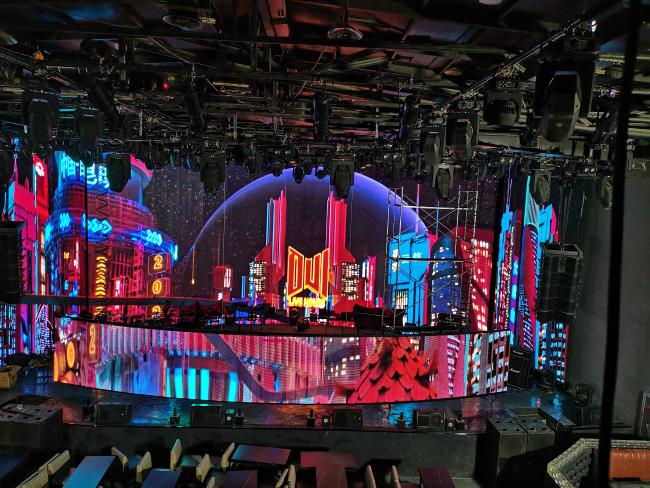

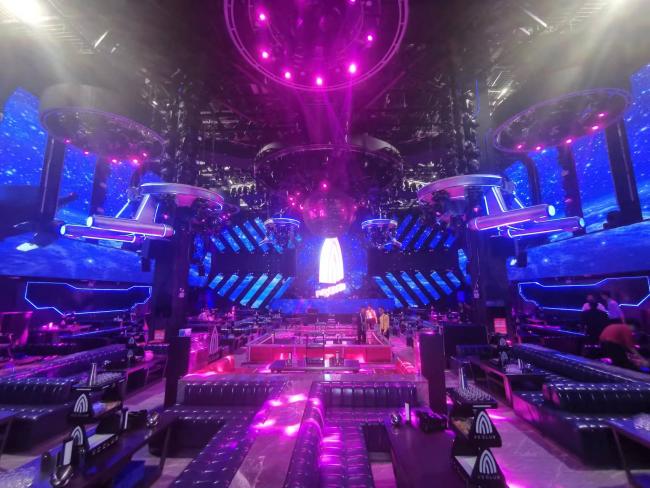

Application:
FQA:
Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.
Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What can you buy from us?
A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.
Q4: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen. Welcome to visit our factory anytime at your convenience.
