IP68 Outdoor LED Display Screen FM-B PH3 192mmx192mm High Definition LED Display
FM-A PH3 192mmx192mm Customized Outdoor Waterproof LED Display Screen
Detailed product introduction document:
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. stage performance
4. radio and television studio
5. promotional activities
6. banquet activities
Features:
1. high permeability, high refresh and high gray scale
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. good heat dissipation
4. ultra high brightness and High definition
5. super thin and light and Stunning image display
6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: FM-A PH3
| Pixel Pitch (mm) | 3 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 111111 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 64x64 | LED Composition | RGB three in one |
| Module Size | 192x192 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/16 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1415/SMD1921 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |

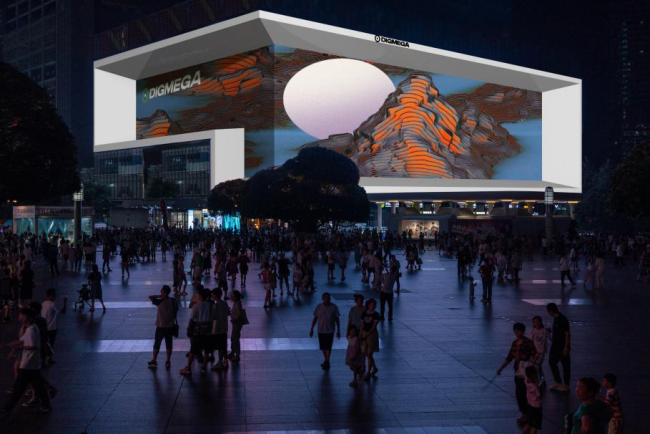

Application:
