Full Color Outdoor LED Display Screen 320mmx160mm Video Wall LED Display FM-A PH5
FM-A PH5 320mmx160mm Customized Outdoor Waterproof Video Wall LED Display Screen Advertising Screen
Detailed product introduction document:
Applicable scenarios :
1. commercial real estate
2. entertainment culture
3. stage performance
4. radio and television studios
5. play videos and pictures
Features:
1. high permeability, high refresh and high gray scale
2. High protection, more reliable quality, the box can be directly exposed to the outdoors, and can operate in thunderstorms and other severe weather
3. High-quality lamp beads can be lit continuously: the service life is up to 100,000 hours, and the quality is guaranteed
4. Support front and rear maintenance, convenient and fast: the module and power box can be disassembled and maintained front and back, making installation and maintenance convenient and fast;
5. 160° wide viewing angle: No matter viewed from any angle, the picture quality is smooth and clear, and the viewing angle range is wide.
Product Details
Models: FM-A
| Pixel Pitch (mm) | 5 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 40000 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 64x32 | LED Composition | RGB three in one |
| Module Size | 320x160 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/8 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1921 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |

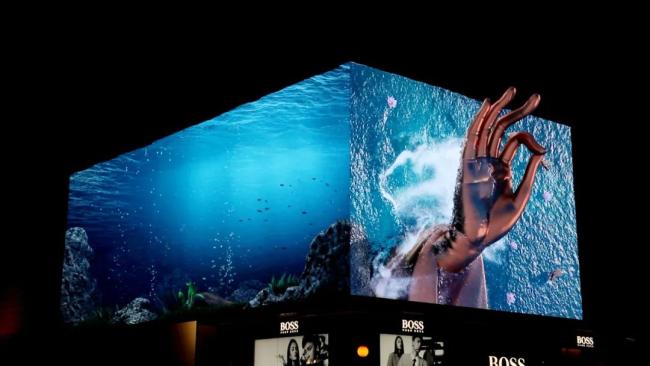

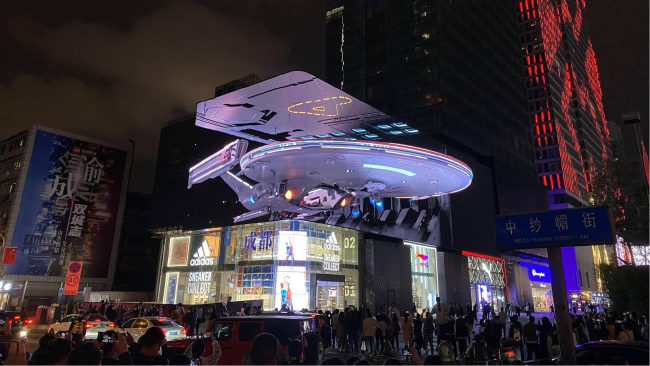

Application:
