FM-B PH3 3D Outdoor Advertising LED Display Screen IP65 Full Color
FM-B PH3 Customized Outdoor Waterproof 3D Advertising LED Display Screen
Detailed product introduction document:
Applicable scenarios :
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Bars/Night Clubs/KTV
4. space decoration
5. promotional activities
6. Floor and Ceiling Display and Media Advertising
Features:
1. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65;
2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes
3. Quick heat dissipation and energy saving: 30%~50% lower in power consumption than traditional led displays.
4. ultra high brightness and High definition
5. wide viewing angle H120° V120°: To meet see-through video display requirements in multiple occasions.
6. Fast, simple and convenient: multi-functional link, more stable, convenient and safe
Product Details
Models: FM-B PH3
| Pixel Pitch (mm) | 3 | Maximum Power (W/㎡) | 1000-1200W |
| Pixel Density (dot/㎡) | 111111 | Conventional Power (W/㎡) | 400-600W |
| Module Pixel | 64x64 | LED Composition | RGB three in one |
| Module Size | 192x192 | Eliminate Shadows | Equipment |
| Refresh Rate (HZ) | 1920/3840 | Input Voltage | AC100～240V 50/60HZ |
| Scan Mode | 1/16 Scan | Module Input Voltage | DC4.7～5V±0.2V |
| Lamp Type | SMD1415/SMD1921 | Module Thickness(mm) | 15.6 |
| Brightness (cd/㎡) | 4500-7500 | Cabinet Size | Customized |
| Lifespan (hours) | ≥100,000H | Gray Scale | 14bit |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | Magnetic installation / Cabinet installation |

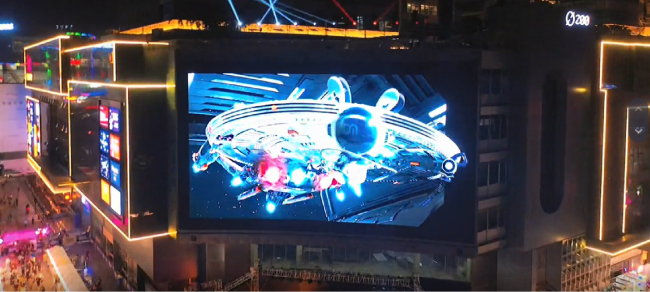

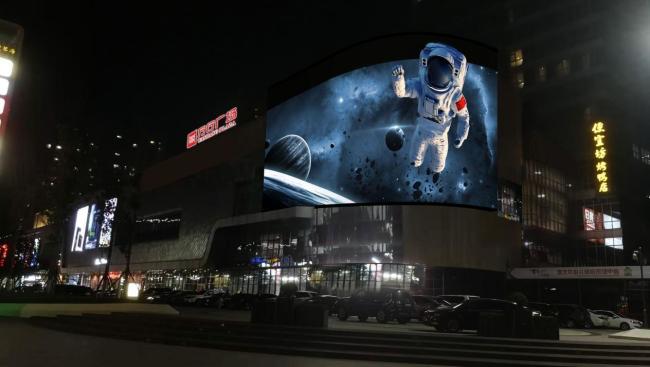

Application:
