High Resolution LED Dance Floor Tiles Outdoor Indoor 500mm*500mm DM-R 3.91
1000mm*500mm PH3.91 Outdoor Indoor High Resolution high brightness LED dance floor tiles
Detailed product introduction document:
Applicable scenarios:
1. stage performance
2. exhibition hall and party
3. shopping mall
4. Bars/Night Clubs/KTV and supermarket
5. wedding party
6. space decoration
Features:
1. high refresh and high gray scale
2. Quick installation and front maintenance
3. The floor LED display adopts high-strength frame design, which ensures its safety and firmness.Its maximum load-bearing capacity is about 2200kg/m,which can greatly guarantee the safety of stage activities.
4. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
5. Outdoor or indoor using, protection level can reach IP65
6. high class appearance
7. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Product Details:
| Pixel Pitch (mm) | 3.91 | Refresh Rate (HZ) | 1920/3840 |
| Module Size (mm) | 250x250 | Maximum Power (W/㎡) | 800W |
| Module Pixel | 64x64 | Conventional Power (W/㎡) | 600W |
| Pixel Density (dot/㎡) | 65536 | Gray Scale | 14bit |
| Lamp Type | SMD1415 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 1500 | protection level | IP65 |
| Scan Mode | 1/16 Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 16 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 500x500 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 128x128 | Cabinet Weight | 12kg |
| Total Thickness (mm) | 76 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |

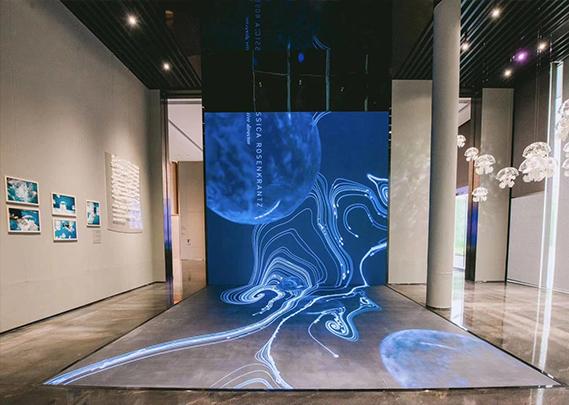

Application:
