P PH4 Indoor LED Display Screen 256mmx128mm Full Color Small Pitch LED Display
P PH4 256mmx128mm Indoor Full Color Led Video Wall Screen
Detailed product introduction document:
Applicable scenarios:
1. command center
2. energy control room
3. government and enterprise conference hall
4. radio and television studio
5. education and training centre
6.Multimedia exhibition hall
7.Smart city
8.Celebration screen
9.Conference screen
Features:
1. high refresh and high gray scale
2. Support graphics correction technology to ensure consistency of brightness, grayscale, and chroma;
3. Supports multiple combinations of unit modules + chassis to meet various complex needs of project scenarios;
4. Self-made kit mold, with good flatness, no deformation, strong oxidation resistance, and more stable use;
5. More flexible installation and more convenient maintenance.
Product Details
Models: P PH4
| Pixel Pitch (mm) | 4 | Refresh Rate (HZ) | 3840 |
| Module Size (mm) | 256x128 | Contrast Ratio | ≥5000:1 |
| Module Pixel | 64x32 | Conventional Power (W/㎡) | 400-600W |
| Pixel Density (dot/㎡) | 62500 | Gray Scale | 16bit |
| Lamp Type | SMD2121 | LED Composition | RGB three in one |
| Brightness (cd/㎡) | 500-800 | protection level | IP65 |
| Scan Mode | 1/32Scan | Eliminate Shadows | Equipment |
| Module Thickness (mm) | 13 | Input Voltage | AC100～240V 50/60HZ |
| Cabinet Size (mm) | 640x480 | Module Input Voltage | DC4.7～5V±0.2V |
| Cabinet Pixel | 416x312 | Cabinet Weight | 30kg |
| Cabinet Thickness (mm) | 32.5 | Cabinet Material | Sheet Metal |
| Lifespan (Hours) | ≥100,000H | Maintenance | front/rear maintenance |
| Working Temperature and Humidity | Temperature:-10～40℃ Humidity:10％-90％ | Installation | fixed installation |
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | Control System | Nova / Colorlight System / Magnimade System / Mooncell System |

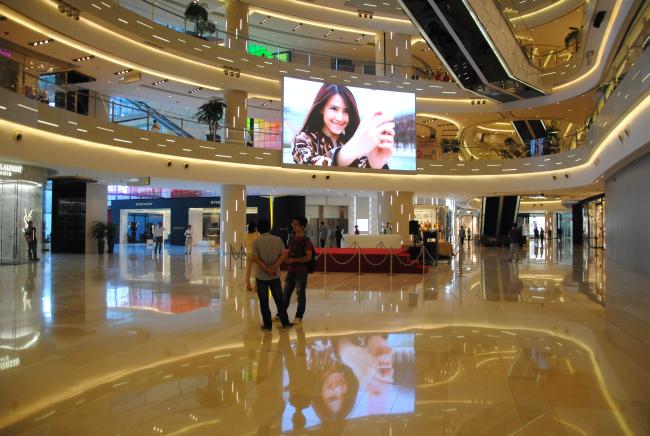

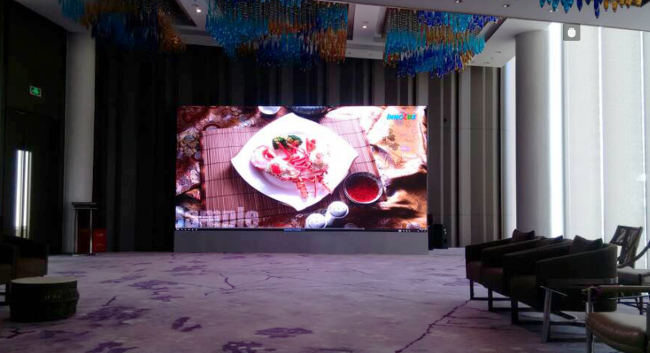

Application:
