High Precision Lightweight LED Screen Die casting Aluminum Outdoor Rental LED Screen
Rental LED display screens RS-A outdoor high precision lightweight design
Detailed product introduction document:

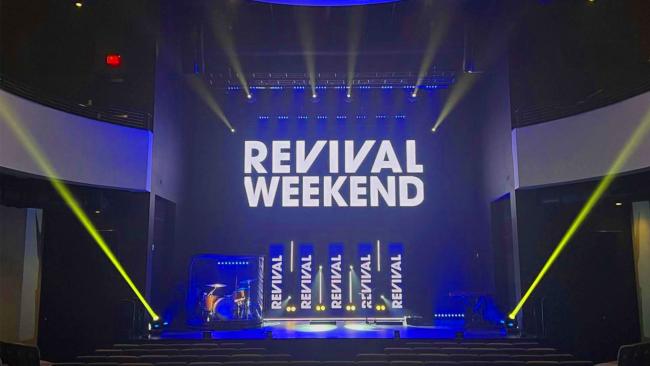

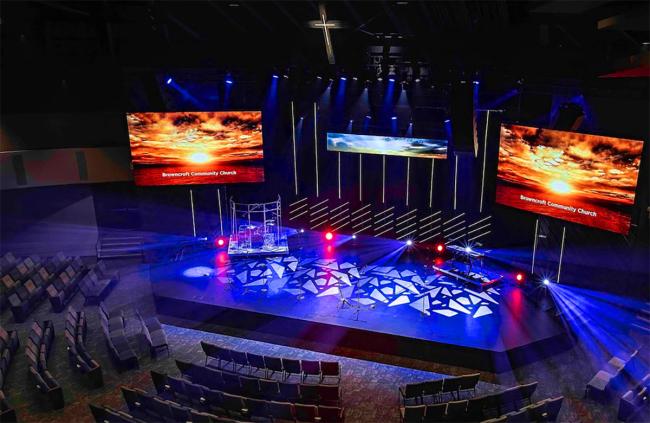

Applicable:
1. stage performance
2. new product presentation
3. Advertising activities
4. training and airport
5. bar and night cub
Features:
1. High definition display with ideal enjoyment: 18Bits high grayscale and more than 3840Hz refresh rate enable no flicker during live streaming signal switch;
2. Ultra-thin cabinet, the whole cabinet is made of aluminum alloy or magnesium alloy material, Faster and easier installation
3. Support arc splicing: the arc lock can be customized, supports multi-angle installation and seamless splicing between spliced boxes;
4. Convenient Mix & Match: The H500/H1000 module is universal,can splice and display in diversity.
5. Perfect enjoyment of high-definition display: 16Bits high grayscale, high refresh rate above 1920, no flicker during live switching;
6. Support front and rear maintenance to reduce maintenance costs: the playback screen presents a suspended style, which will not affect the vision of the building when it is lit
7. Convenient installation method, convenient and fast: the box body is designed with a quick lock structure, which is convenient and fast to install;
Product Details
Models:RS-A
| Rental LED display screen (RS-A series) | ||||
| Models | RS-A 2.604 | RS-A 2.976 | RS-A 3.91 | RS-A 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 4000 | 4500 | 4500 | 4500 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 120,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 18bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 500W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | Front IP65 and rear IP54 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | front/rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||
Application:
FAQ:
Q1 : What is the control system?
A : Our company uses Nova / Colorlight System / Magnimade System / Mooncell System
Q2 : What is the maintenance method for the product?
A : front and rear maintenance
Q3 : Can I have a sample order for led screen?
A : Yes, we welcome sample order to test and check quality.
