Outdoor waterproof LED rental screen RS-B series, strong wind and rain resistance, high-definition display
Outdoor waterproof LED rental screen RS-B series, strong wind and rain resistance, high-definition display
Introduction:
Lightweight design is another major feature of LED rental screens, especially in the rental industry that requires frequent transportation and installation. Modern LED rental screens usually use lightweight materials such as aluminum alloy or magnesium alloy, which not only reduces the weight of the screen, but also enhances the stability and durability of the structure. The lightweight design makes the screen easier to install and disassemble, saving manpower and time costs. In addition, the lighter weight is also conducive to reducing transportation costs, especially for large stages and exhibitions, the lightweight design makes the layout more efficient and flexible.
Detailed product introduction document:
Applicable scenarios:
1. Stage rental
2. Banquet hall
3. Conference/lecture hall
4. Exhibition
5. Transportation
6. Entertainment and culture
7. Large-scale events
...
Features:
2. Lightweight design: It uses lightweight materials for easy transportation and installation.
3. Quick installation: Modular design supports quick splicing and disassembly.
4. High brightness: It can still maintain a clear and visible display effect in a strong light environment.
5. Wide viewing angle: It has a wide viewing angle to ensure clear viewing from different directions.
6. High refresh rate: The refresh rate is high to ensure smooth dynamic pictures without flickering.
7. Customizable size: It supports flexible customization to meet the needs of different scenarios.
Product Details
Models:RS-B
| Rental LED display screen (RS-B series) | ||||
| Models | RS-B 2.604 | RS-B 2.976 | RS-B 3.91 | RS-B 4.81 |
| Pixel Pitch (mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| Module size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Module pixel | 96x96 | 84x84 | 64x64 | 52x52 |
|
Pixel Density (dot/㎡) |
147456 | 112896 | 65536 | 43264 |
| LED Lamp Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 4500 | 4500 | 4500 | 4500 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Module thickness (mm) | 15 | 15 | 15 | 15 |
| Cabinet size (mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet pixel | 192x192/192x384 | 168x168/168x336 | 128X128/128X256 | 104X104/104X208 |
| Module+Cabinet thickness (mm) | 15+75=90 | 15+75=90 | 15+75=90 | 15+75=90 |
| Lifespan (hours) | ≥ 100,000 hours | |||
| LED Composition | RGB three-in-one | |||
| Grey scale | 14bit | |||
|
Maximum power (W/㎡) |
800W | |||
| Conventional power (W/㎡) | 600W | |||
| Control System | Nova / Colorlight System / Magnimade System / Mooncell System | |||
| Signal Connection | WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system | |||
| the protection grades | IP30 | |||
| Eliminate Shadows | Equipment | |||
| input voltage | AC100～240V 50/60HZ | |||
| Module input voltage | DC4.7～5V±0.2V | |||
| Working temperature and humidity | Temperature:-10～40℃ Humidity:10％-90％ | |||
| Weight (kg) | 7.5kg(500x500 ) /16kg(500x1000 ) | |||
| Cabinet material | Die casting aluminum | |||
| Maintenance | rear maintenance | |||
| Installation | hoisting/fixed installation/Build on standing structure | |||

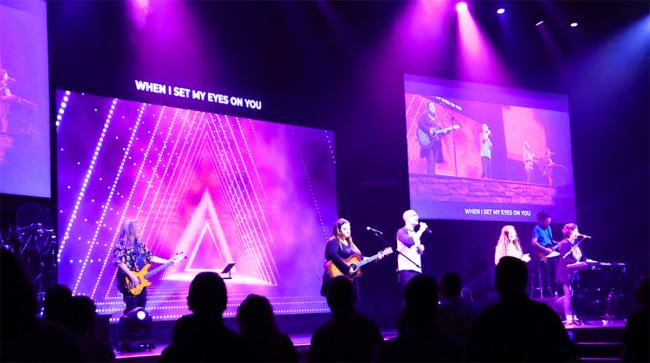

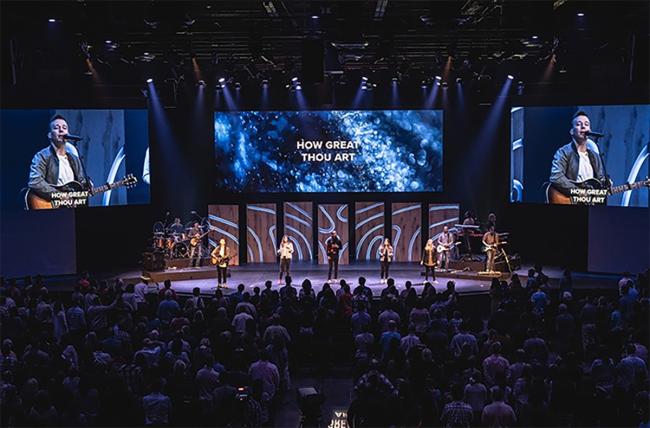

Application:
FAQ:
Q1: What is the control system?
A: Our company uses Nova / Colorlight System / Magnimade System / Mooncell System
Q2: How to connnect?
A: Support WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Q3: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q4: What is the price of LED display?
