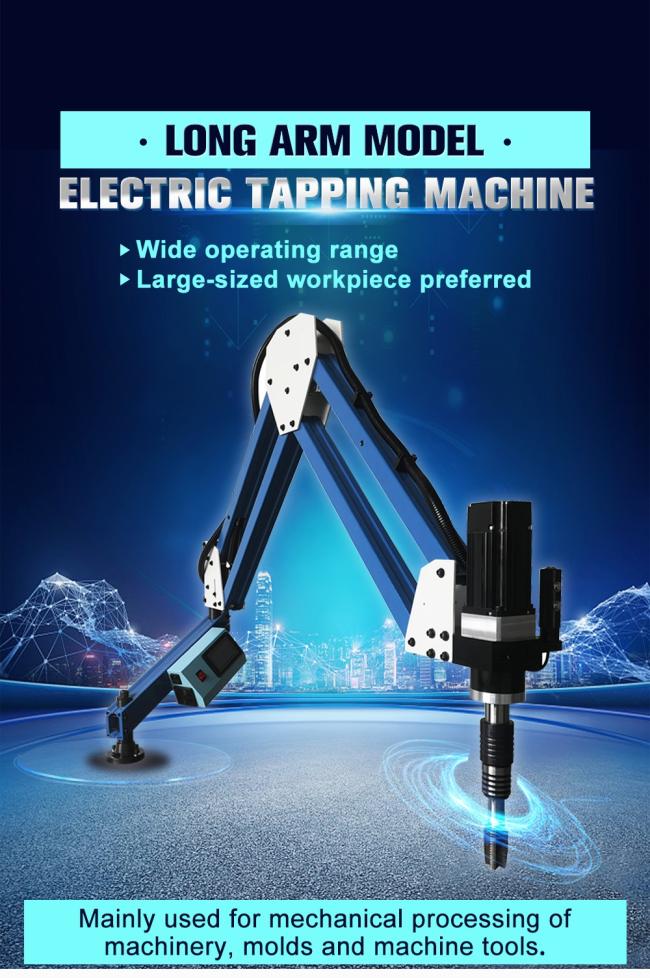

1900mm Long Arm Electric Tapping Machine,M6-M24,Touch Screen,360° Angle Tapper
Note: Each set is equipped with 6 tapping collets for free, please let me know your standard and model of collets.

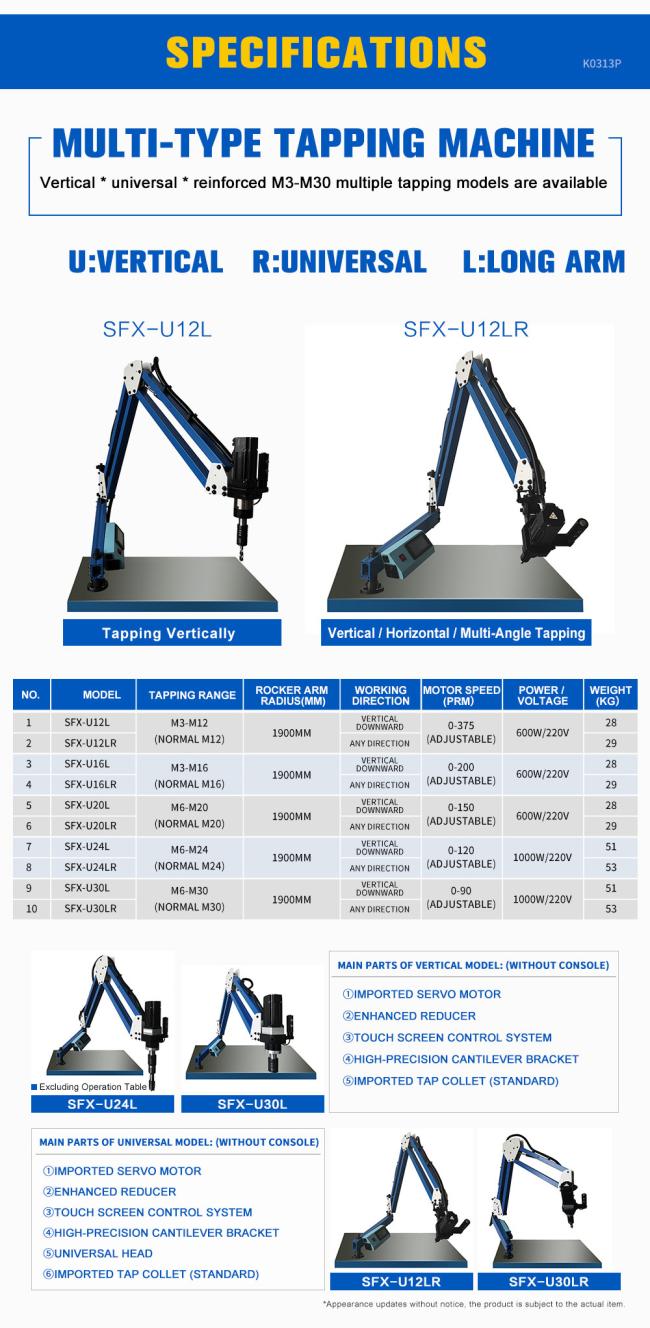

Specifications
Model: SFX-U24LR
Voltage: 110V/220V
Power: 1000W
Tapping range: M3-M24
Motor speed: 0-120rpm(adjustable)
Working radius: 1900mm
Working direction: Universal
Package dimensions: 700*650*250cm
Package weight: 53KG (117lbs)
Application area

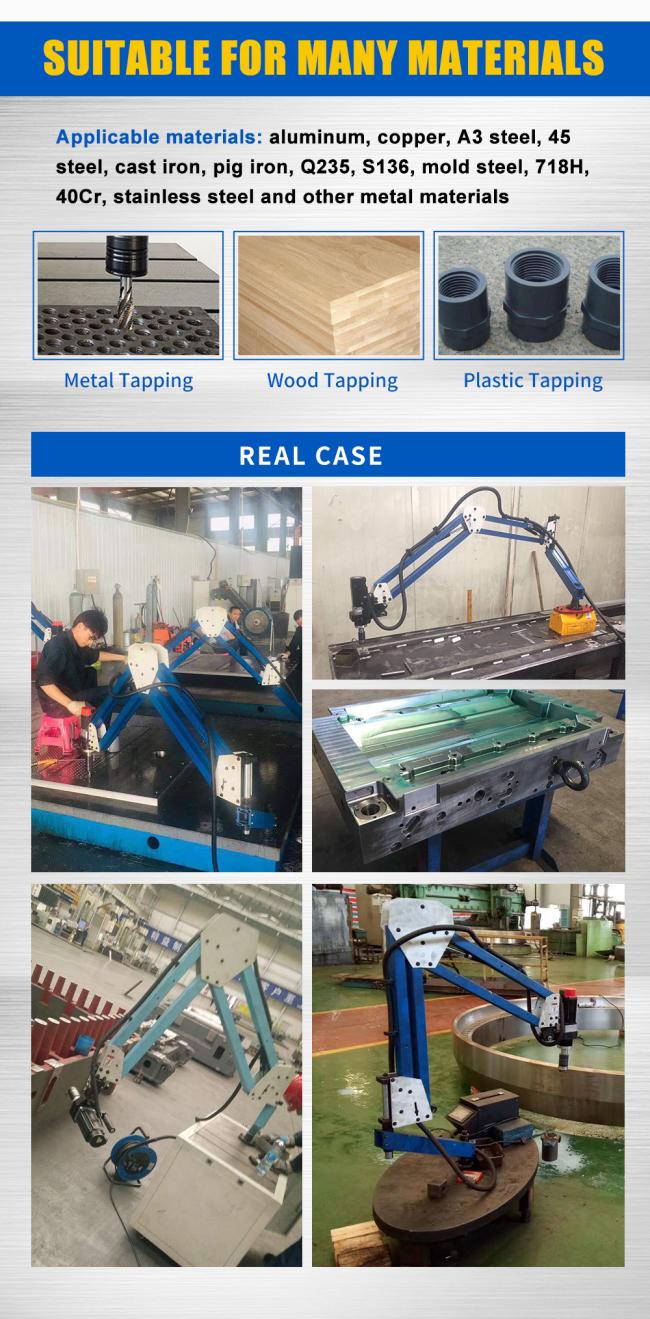

Used in factory workshops, woodworking, DIY work, mold manufacturing, etc., for steel tapping, aluminum tapping, copper tapping, iron tapping, wood tapping, plastic tapping, etc.
Advantages
(1) Machine power 600W, suitable for M6-M24 wire tapping.
(2) High quality servo motor, strong power and long service life.
(3) Universal wire tapping head can be tapped in any direction and positioned accurately.

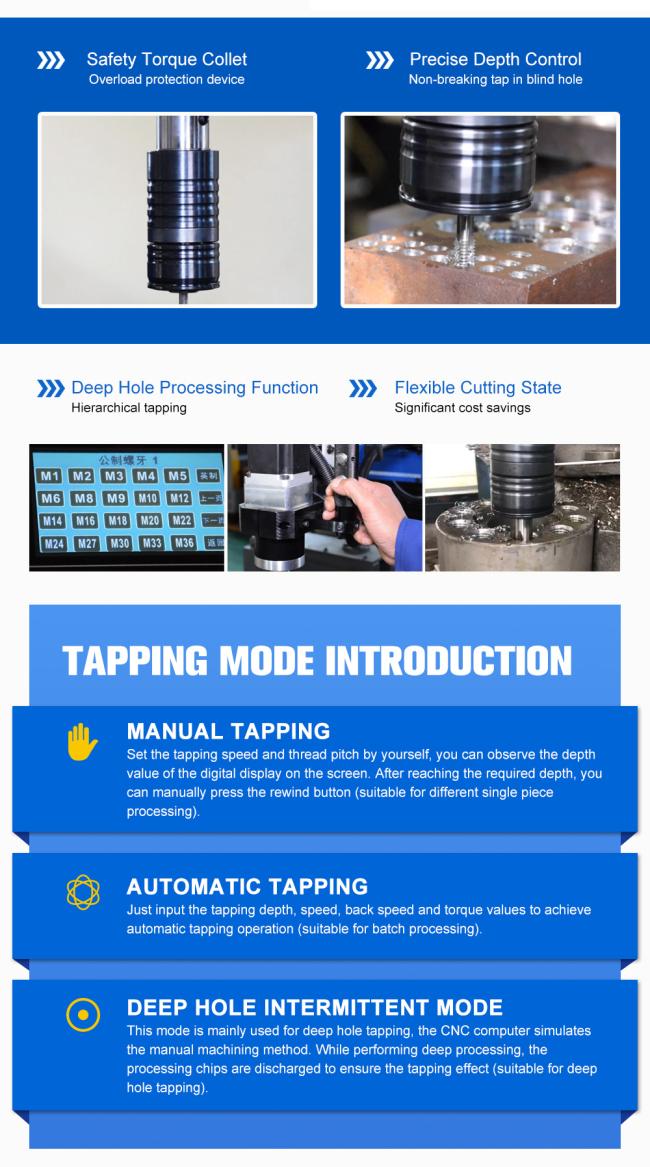

(4) The taper sleeve has an overload protection device to ensure that it does not damage the tap, the load balance in the tapping process, the high precision of the screw processing, and the protection of the torsion force.
(5)manual, automatic and gap three modes of work for your choice.

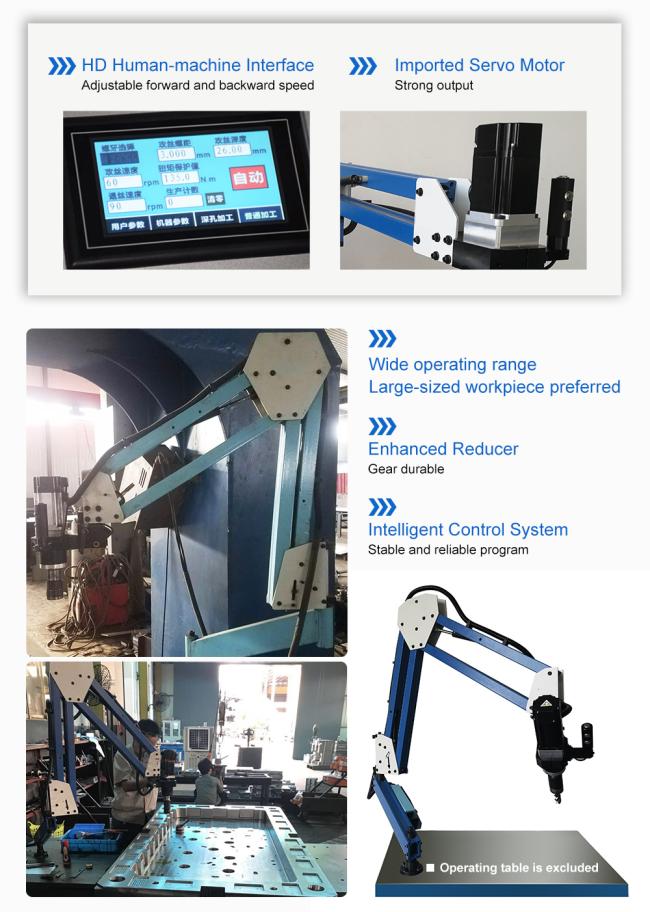

(6) Small touch screen computer control, which can adjust parameters such as tapping speed and depth.
(7) High work efficiency, simple and convenient to apply.
