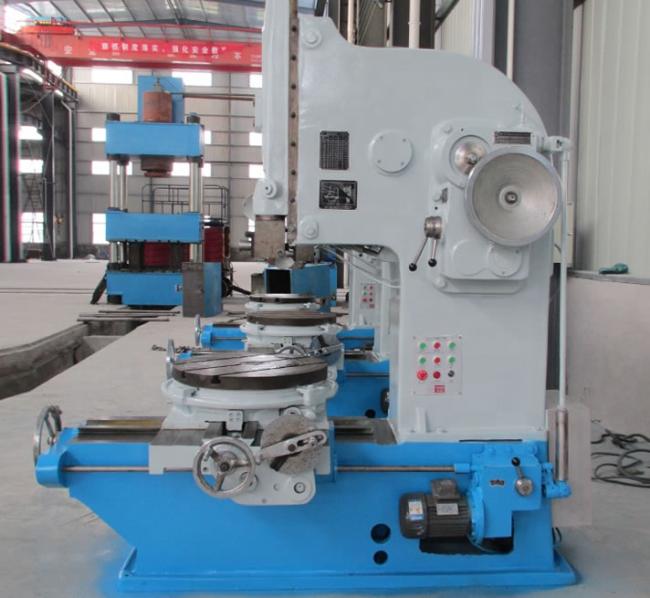

The B5063 is a linear motion machine that uses a vertical reciprocating motion of the inserter to insert keyways and holes. The inserting machine, like the planer, uses a single-edged tool (insert knife) to cut the workpiece, but the planer is a horizontal layout and the insert is a vertical layout.
The productivity and precision of the inserting machine are relatively low, and it is often used for machining the inner hole keyway or spline hole in single or small batch production, and can also process flat, square or polygonal holes, etc., and is often replaced by a milling machine or a broaching machine in mass production. However, when machining the inner keyway without a through hole or a sloping shoulder, only the insertion bed is used.
| Max.Slotting Length of ram | 630 | mm |
| Number of ram strokes(per min) | 8,12,20,30 | r.p.m |
| Indination of ram head | ±10° | deg |
| Distance between tool holding surface and colunmn front | 1120 | mm |
| Collet for slotting tool with sidth of Table | 22H11 | mm |
| Distance between workable and the lower side of slide | 800 | mm |
| Max .longitudinal travel of table | 1120 | mm |
| Range of table longitudinal and transverse feeds ram storke | 0.10,0.20,0.32,0.54,0.80,1.30 | mm/per |
| Rang of table rotary feed deg per ram storke | 3`,6`,9`36``,16`12``,24`,39` | deg/per |
| Diameter of the worktable | 1120 | mm |
| Max.weight of the worktable | 2000 | kg |
| Width of main drive motro | 22H11 | mm |
| Power of main drive motor | 10 | kw |
| Max Cutting force | 2000 | N |
| Machine net weight(approx) | 11 | t |
| Overall dimension(L*w*H) | 3580*2390*3660 | mm |
1. This vertical planning active surfaces of parts and notch etc.
2. The machine runs smoothly owing to it adopts double crank mechanism.
3. The length of ram stroke can be adjusted by power
4. The machine operates easily because motion of the working table is driven by electric motor.
5. It has a pump for lubrication and cooling cutting tool woo piece.
