High Precision Horizontal Planer Shaper Machine Metal Shaping Machine Tool
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20 days
Product Description

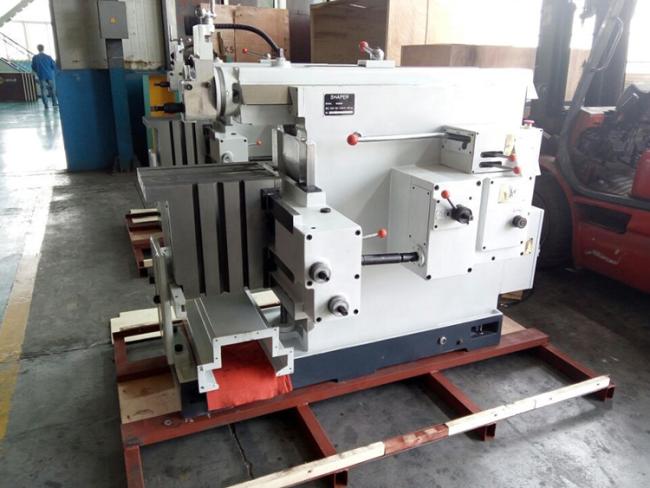

High Precision Horizontal Planer Shaper Machine Metal Shaping Machine Tool
The ram is used for horizontal straight-line movement. The tool holder can be rotated at multiple angles in the vertical plane and can be fed manually. The workbench carries intermittent or vertical feed motion with the workpiece for machining planes, grooves and The dovetail surface, etc., can also be used to machine the forming surface, and the workpiece that has been fixed on the working platform of the machine tool is cut by the tool of the double movement.
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.
1: The table of the planer can rotate the left and right angles, and the worktable has a moving structure of lateral and lifting; it is used to plan the inclined plane, thereby expanding the scope of use.
2: The feeding system of the planer adopts a cam mechanism, and it is very convenient to adjust the feed amount to change the amount of the cutter.
3: The planer is equipped with an overload safety mechanism in the movement system. When the operation is inadvertent or affected by external force and the cutting overload, the knife slips on its own, and the non-destructive parts ensure the normal operation of the machine.
4: The ram and the bed rails, as well as the gears with speed and the main sliding guide surface, are lubricated by the oil pumped by the oil pump.
5: The planer is equipped with a brake parking mechanism, so it is not necessary to cut off the power when starting the machine and stopping at the changing speed.
2: The feeding system of the planer adopts a cam mechanism, and it is very convenient to adjust the feed amount to change the amount of the cutter.
3: The planer is equipped with an overload safety mechanism in the movement system. When the operation is inadvertent or affected by external force and the cutting overload, the knife slips on its own, and the non-destructive parts ensure the normal operation of the machine.
4: The ram and the bed rails, as well as the gears with speed and the main sliding guide surface, are lubricated by the oil pumped by the oil pump.
5: The planer is equipped with a brake parking mechanism, so it is not necessary to cut off the power when starting the machine and stopping at the changing speed.
| Specifications | Units | BC6085 | BC6090 |
| Maximum shaping length | mm | 850 | 900 |
| Maximum distance from ram bottom to table surface | mm | 400 | 400 |
| Maximum moving distance of the working table(horizontal) | mm | 710 | 750 |
| Maximum moving distance of the working table (vertical) | mm | 360 | 320 |
| Table size (L*W) | mm | 800×450 | 900X500 |
| Maximum travel of tool head | mm | 160 | 160 |
| Tool carrier rotary angle | ° | ±60° | ±60° |
| Number of ram reciprocating per minute | 17,24,35,50,70,100 | 12.5-72.8 | |
| Feeding range of level travel(12steps) | mm | 0.25~3 12 steps | 0.3-3 10 STEPS |
| Feeding range of vertical travel(12steps) | mm | 0.12~1.5 12 steps | 0.15-0.5 8 STEPS |
| Rapid feed speed of table level | mm | 1.2 | 2.36 |
| Rapid feed speed of table vertical | mm | 0.58 | 0.55 |
| T-slots width | mm | 22 | 22 |
| Main motor power | KW | 5.5 | 5.5 |
| Overall dimension(L*W*H) | mm | 2950×1325×1693 | 3164X1675X1740 |
| N/G.W | kg | 2940/3090 | 3200/3300 |
1): What is your minimum order quantity and warranty?
A:warranty is one year.
2): What Max wheel size the wheel machine can cut?
A: We produce many model machines to meet different customer’s request.wheel size up to 35”.
3): Can the machine cut special wheel,such as deep dish wheel?
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We equip laser probing function, can probing and repair all wheel and can realize rainbow line effect.
4): If your machine all steps are operated on machine, not need go to computer?
A: yes. no problem. we produce the new machine with touch screen and laser probing, and our own software.optimization and cutting can be finished in machine system.
5): Is it easy to learn?
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
6): Is it easy to use?
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse are set up and the mouse can be used together with the touch screen. The customer can establish their own database of different models of wheels and the saved data can be used in the cutting of same model.
7):What is your service for the machine?
A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can contact with our company to start the after sale service.The software support remote upgrade, enjoy life free upgrade to the latest version.
A:warranty is one year.
2): What Max wheel size the wheel machine can cut?
A: We produce many model machines to meet different customer’s request.wheel size up to 35”.
3): Can the machine cut special wheel,such as deep dish wheel?
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We equip laser probing function, can probing and repair all wheel and can realize rainbow line effect.
4): If your machine all steps are operated on machine, not need go to computer?
A: yes. no problem. we produce the new machine with touch screen and laser probing, and our own software.optimization and cutting can be finished in machine system.
5): Is it easy to learn?
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
6): Is it easy to use?
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse are set up and the mouse can be used together with the touch screen. The customer can establish their own database of different models of wheels and the saved data can be used in the cutting of same model.
7):What is your service for the machine?
A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can contact with our company to start the after sale service.The software support remote upgrade, enjoy life free upgrade to the latest version.
