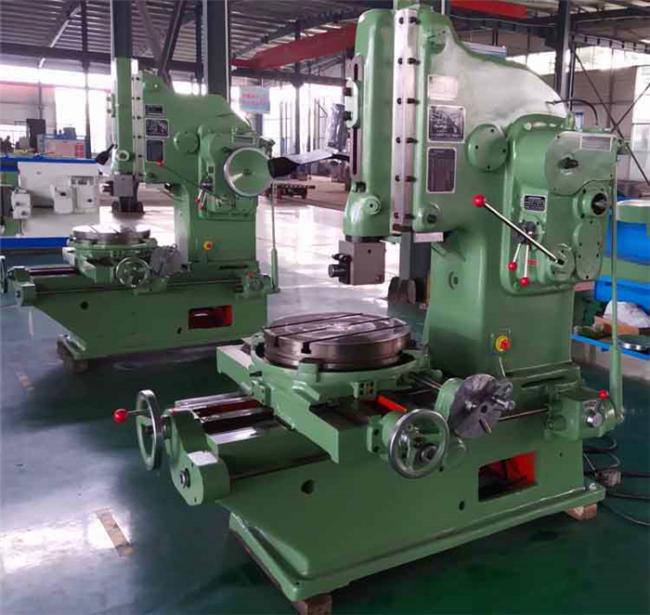

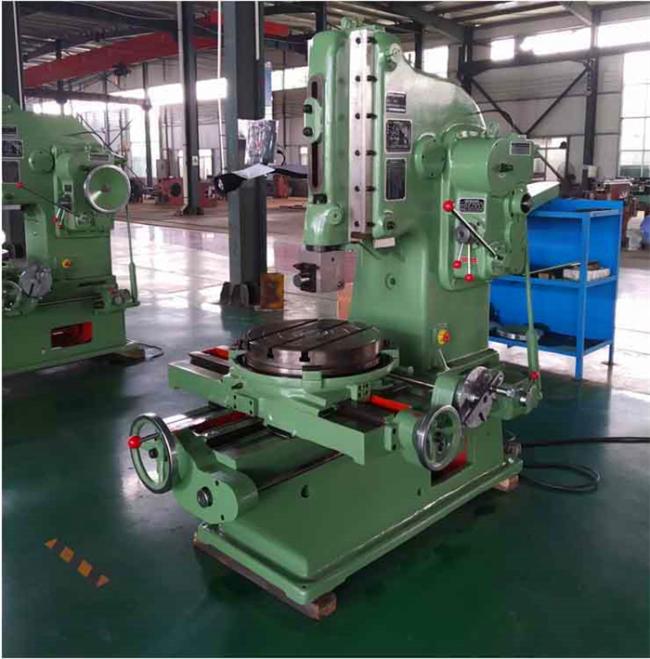

Manual Type Vertical Slotting Machine For High Precision Metal Processing

Manual Type Vertical Slotting Machine For High Precision Metal Processing

1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10&deg Mold and other within the scope of etc. work matter,,

2. Enterprise suitable for single or small batch production.

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed,Therefore be better than mechanical slotting machine used drum wheel feed.
