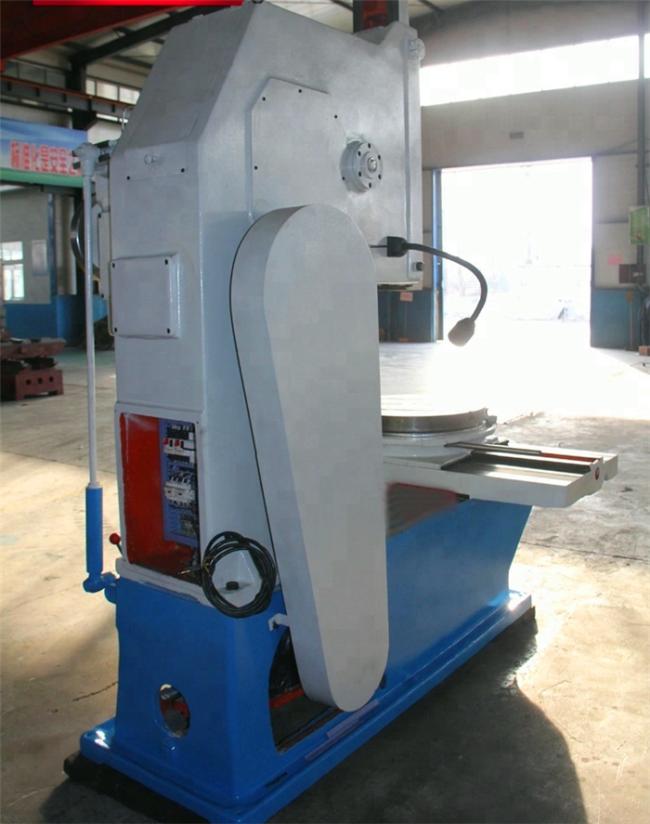

Vertical Shaper Machine B5050 B5063 , Hydraulic Keyway Slotting Machine
Vertical Shaper Machine B5050 B5063 , Hydraulic Keyway Slotting Machine
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,Enterprise suitable for single or small batch production.
1) The main transmission mechsnism is used for converting the moting of the crank gear in order to reciprocating motion of ram .
The worktable us designed for ongirudinal ,cross and rotary feeding both auytomatically and manually.
The feed is stopped automatically.when the worktable is in case of trouble.
2) This machine is designed elaborately with high standardization,uniform ization ,systemation and
has reasonable arrangement with compact and harmonical construcition,pleasing appearance,conveninent maintenance.
3) The electric epuipment of this machine is suitable for 3-phasesA.C.power supply of 50 cycles.380V.
| Model | B5032 |
| Max.slotting length | 320mm |
| Max.dimensions of wodplece(L*H) | 600*320mm |
| Max.weight of workpiece | 500kg |
| Max.cutting force | 7500N |
| No.of strokes per minutem | 20.32.50.80.r.p.m |
| Vertical ajustment of ram | 315mm |
| Inclination of ram | 0-8° |
| Distance between tool holdingsurface and column front | 600mm |
| Max.tool shank size (W*H) | 25*40mm |
| Table diameter | 630mm |
| Distance between table surface and low end of ram | 490mm |
| Max.longitudinal travel of table | 480/630mm |
| Max.cross travel of table | 480/560mm |
| Max.Rotary angle of table | ±360° |
| Range of table longitudinal and cross power feeds | 0.08-1.21mm |
| Range of table power feeds | 0.052-0.783 |
| Power of rapid drive motor | 4kw |
| Rotating speeed of main drive motor | 960r.p.m |
| Overall dimensions (L*W*H) | 2180*1505*2285mm |
| Weight(approx) | 3500kg |
