Heavy Duty Metal Planer Machine B5032 Keyway CE / ISO Certification
Heavy Duty Metal Planer Machine B5032 Keyway CE / ISO Certification
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,Enterprise suitable for single or small batch production.

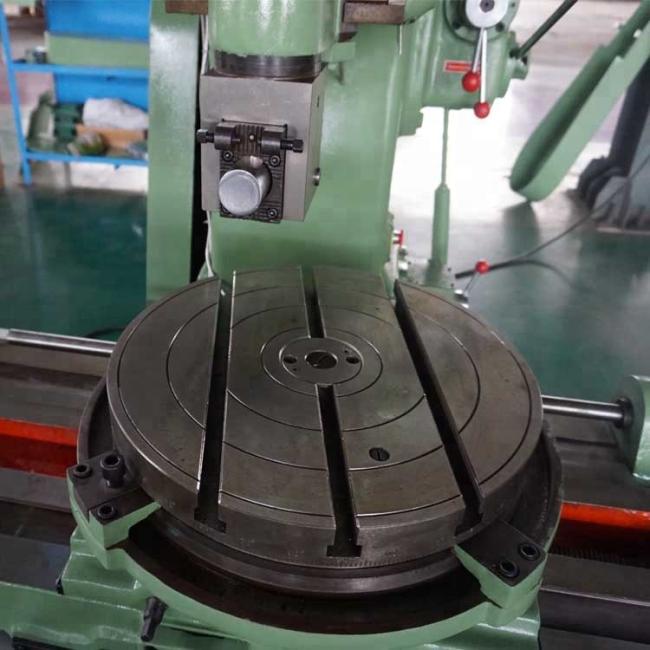

- The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining
- Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
- The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
- Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
- Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
| Model | B5032 |
| Max.slotting length | 320mm |
| Max.dimensions of wodplece(L*H) | 600*320mm |
| Max.weight of workpiece | 500kg |
| Max.cutting force | 7500N |
| No.of strokes per minutem | 20.32.50.80.r.p.m |
| Vertical ajustment of ram | 315mm |
| Inclination of ram | 0-8° |
| Distance between tool holdingsurface and column front | 600mm |
| Max.tool shank size (W*H) | 25*40mm |
| Table diameter | 630mm |
| Distance between table surface and low end of ram | 490mm |
| Max.longitudinal travel of table | 480/630mm |
| Max.cross travel of table | 480/560mm |
| Max.Rotary angle of table | ±360° |
| Range of table longitudinal and cross power feeds | 0.08-1.21mm |
| Range of table power feeds | 0.052-0.783 |
| Power of rapid drive motor | 4kw |
| Rotating speeed of main drive motor | 960r.p.m |
| Overall dimensions (L*W*H) | 2180*1505*2285mm |
| Weight(approx) | 3500kg |
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the package of the machines?
A: The machines standard will be packed in plywood case.
