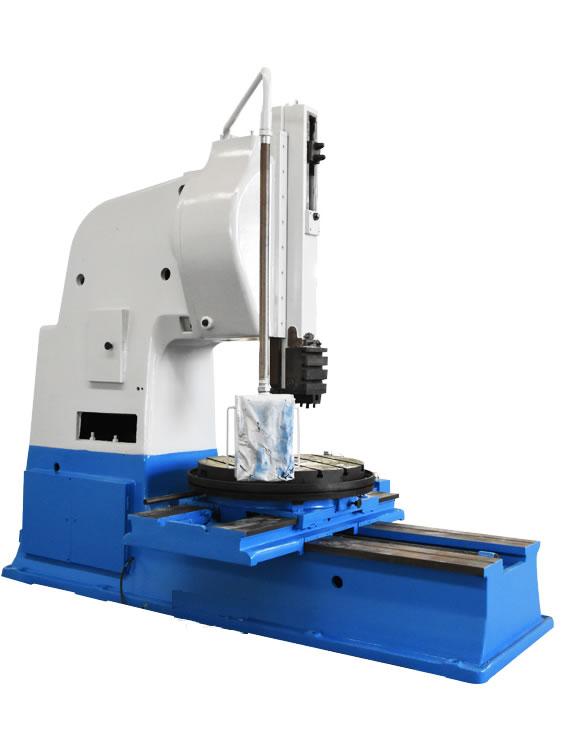

B5050 Surface Vertical Slotting Machine
B5050 used for slotting keaway/ parts surface heavy duty vertical slotting machine
The B5050 inserting machine is the main equipment in the machining industry and is widely used in the field of machining.
In order to improve the working efficiency of the splicing mechanism, a swinging guide mechanism is often used. According to the use requirements, the stroke speed variation coefficient K or the extreme angle is related to the size of the mechanism. In order to improve the design speed and design quality of the insertion mechanism, reduce the design cycle and improve the product competitiveness, the size of the main body of the insertion machine is The design should use an advanced design approach.
| Work range | B5050 | B5063 |
| Max .slotting length | 500mm | 630mm |
| Max . cutting force | 16000N | 20000N |
| No.of ramistrdes per minutem | 9,12.5,18,25,36,50 r.p.m | / |
| Inclination of ram | ±10°deg | ±10°deg |
| Distance between tool holding surface and column front | 990mm | 1120mm |
| Table diameter | 1000mm | 1120mm |
| Distance between table surface and low end of ram | 740mm | 800mm |
| Max.lonitudinal travel of table | / | 1000mm |
| Max .cross travel of table | / | 700mm |
| Range of table longitudinal and transverse feeds ram stroke | 0.1,0.2,0.3,0.4,0.6,1.2 mm/per | 0.10,0.20,0.32,0.54, 0.80,0.30mm/per |
| Rotary feeds worktable | 3′,6′,9′,12′,18′,36′deg/per | 3′,6′,9′,36″,16′,12″,24′,39′deg/per |
| Cross traverse of work table | 660mm | / |
| Longitudinal traverse of worktable | 1000mm | / |
| Max .weight of the worktable | / | 2000kg |
| Width of T solts in the worktable | / | 22H 11mm |
| Max.weight of workpiece | 2000kg | / |
| Range of ram adjustment | 430mm | / |
| Number of ram strokes(per min) | / | 8,12,20,30r. p m |
| Collet for slotting tool with width of T slots | / | 22H 11mm |
| Rapid traverse motor | 1.5kW 1440r.p.m | / |
| Power of main drive motor | / | 10kW |
| Main motor | 7.5kW 1440r.p.m | / |
| Coolant pump motor | 0.125kW 2800r.p.m | / |
| Net weight of machine (approx) | 10.3t | 11t |
| Overall dimensions(L x W x H) | 3480x2085x3307mm | 3580x2390x3660mm |
