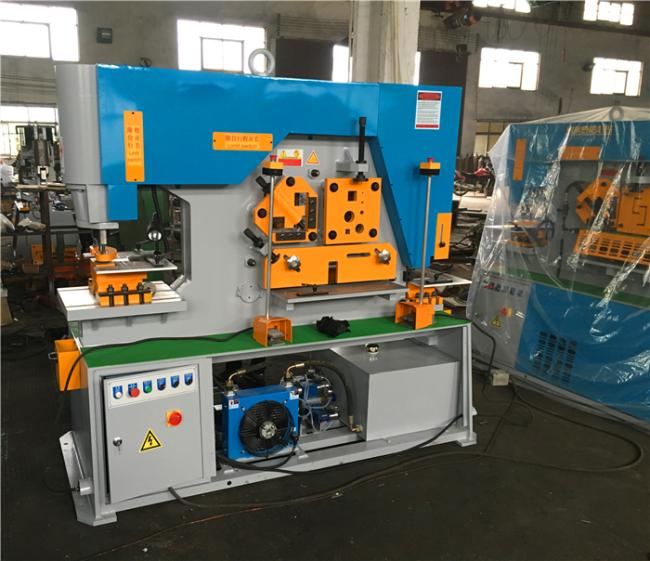

Hydraulic Ironworker Machine Q35Y-16 Hydraulic Type 220v / 380v Voltage
Hydraulic Ironworker Machine Q35Y-16 Hydraulic Type 220v / 380v Voltage
Description:
1. Hydraulic punch & shear machine
2. Easy Adjustable stroke control with ruler
3. Large punch table with multi-purpose bolster
4. Removable table block for overhang channel / joist flange punching applications
5. Universal die bolster, easy change punch holder fitted, punch adapters supplied
6. Angle, round & square solid mono block crop station
7. Rear notching station, Low power inching and adjustable stroke at punch station
8. Centralized pressure lubrication system
9. Electric panel with overload protection elements and integrated controls
10. Safety movable foot pedal
11. Multiple-functions : Punching, Angle Steel Shearing, Flat Bar Shearing, Round/Square Bar Shearing, Notching, V-Notching, C-Channel Shearing, I-beam shearing, T-bar shearing, Press Brake, Angle Bending and Pipe Notching
Applications:
Multiple functions including-Punch, Angle Shear, Flat Shear, Round, Square Bar Shear, Rec. Notch, V-Notch, Channel Shear,I beam shear,shearing T-bar, Press Brake, Angle Bending and Pipe Notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.
| Model | Punching Pressure | Max cutting thickness(mm) | Max.punching diameter(mm) | Angle of shear(°) | Slider trip (mm) | Trips frequency (times/min) | Throat depth (mm) | Punch depth (mm) |
| Q35Y-12 | 35 | 12 | 25 | 7 | 35 | 10-18 | 115 | 12 |
| Q35Y-16 | 60 | 16 | 25 | 7 | 80 | 9-25 | 300 | 16 |
| Q35Y-20 | 90 | 20 | 30 | 8 | 80 | 10-28 | 355 | 20 |
| Q35Y-25 | 120 | 25 | 35 | 8 | 80 | 9-18 | 400 | 25 |
| Q35Y-30 | 160 | 30 | 38 | 8 | 80 | 7-16 | 600 | 26 |
| Q35Y-40 | 200 | 40 | 40 | 8 | 100 | 6-16 | 530 | 35 |
Q1. How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3. Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4. What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5. Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6. Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
