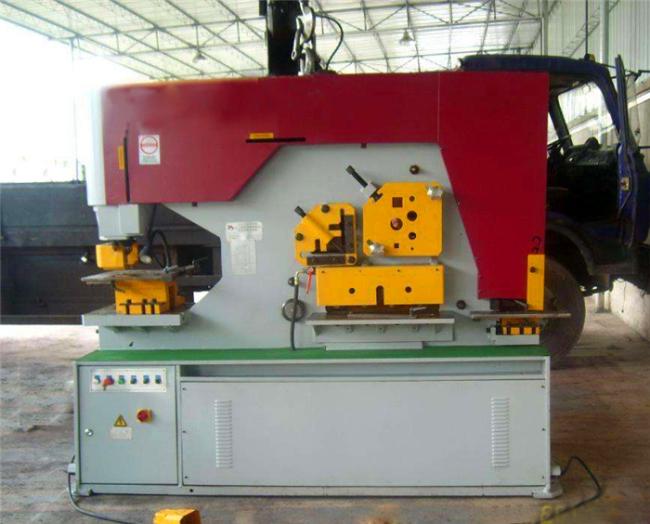

Hydraulic Ironworker Machine Stainless Steel

Main Functions:

1. PUNCHING

The Punching Station offers a full range of universal punches and dies. Unique style allows for large angle iron punching and large channel punching. A large stripper viewing window and the swing away design offers ease of operation. Two-piece gauging table with rulers and stop is offered as standard equipment. Quick change coupling nut and sleeve makes for rapid replacement or changing of the die in use.

2. FLAT SHEARING

At the Flat Bar Shearing Station you can easily adjust the hold for precision cutting and shearing without loosing operator visibility. The large 15-inch squaring arm is inlaid with a scale and comes standard on all machines. A specially contoured anti-distortion blade provides quality cuts while a lower blade offers maximum versatility with four usable edges. Set Screws allow for easy gapping with no shimming required. An included large squaring arm makes miter cuts easy to do. Three-foot electronic back gauge allows for fine adjustment and precision accuracy and features a large contact button for maximum productivity. The fully protected electrical harness offers both safety and reliability.

3. ANGLE SHEARING

The angle cut shear has the ability to cut angled iron at a 45°and 90° angle from both the top and bottom leg, allowing for a picture frame like corner to be made for perfect welds. Installed safety guards are both large and strong offering protection while the machine is in use.

4. BAR SHEARING

Round and Square bar shearing station has multiple holes for a variety of sizes. The adjustable hold-down provides a clean squaring cut and with large, heavy-duty knobs the precise hold can be made.
