Hydraulic Metal Shearing Machine 5.5kw Motor For Sheet Metal Plate Working
Hydraulic Metal Shearing Machine 5.5kw Motor For Sheet Metal Plate Working
Main Feature:
1. Streamlined design originated from EU, the machine frame is a whole through overall welding and annealing treatment.
2. Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems caused by leakage of hydraulic fluid.
3. Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.

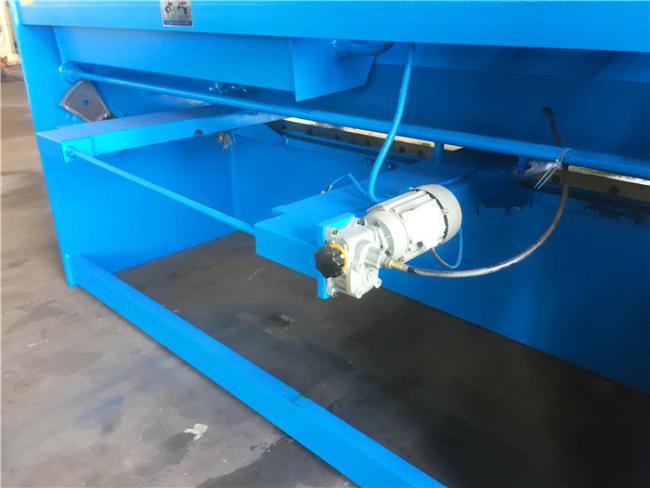

4. Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent positioning device horizontal swinging, significantly improving positioning accuracy.

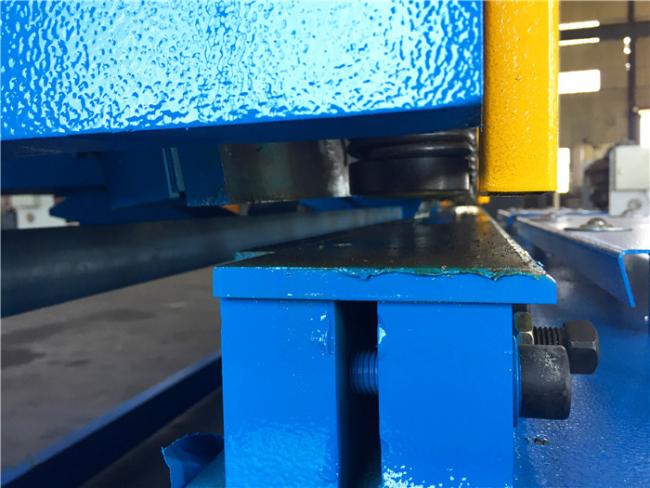

5. Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.
6. Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.
7. Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.
8. The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty material can be cutter easily.
9. Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.
10. Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.
| Max cut thickness | Max cut length | Ram Stroke | Cutting angle | Motor | Machine Szie |
| mm | mm | n/min | ° | kw | mm |
| 4 | 2500 | 20-40 | 0.5-1.5 | 5.5 | 3100x1600x1700 |
| 4 | 3200 | 20-40 | 0.5-1.5 | 7.5 | 3800x1800x1700 |
| 6 | 2500 | 16-35 | 0.5-1.5 | 7.5 | 3150x1650x1700 |
| 6 | 3200 | 14-35 | 0.5-1.5 | 7.5 | 3860x1810x1750 |
| 6 | 4000 | 10-30 | 0.51.5 | 7.5 | 4630x2030x1940 |
| 6 | 5000 | 10-30 | 0.5-1.5 | 11 | 5660x2050x1950 |
| 6 | 6000 | 8-25 | 0.5-1.5 | 11 | 6680x2200x2500 |
| 8 | 2500 | 14-30 | 0.5-1.5 | 11 | 3170x1700x1700 |
| 8 | 3200 | 12-30 | 0.5-1.5 | 11 | 3870x1810x1780 |
| 8 | 4000 | 10-25 | 0.5-1.5 | 11 | 4680x1900x1860 |
| 8 | 5000 | 10-25 | 0.5-1.5 | 15 | 5680x2250x2200 |
| 8 | 6000 | 8-20 | 0.5-1.5 | 15 | 6800x2350x2700 |
| 10 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 10 | 3200 | --25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 10 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 10 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 10 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
| 12 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
| 12 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
| 12 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
| 12 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
| 12 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
Q1. How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3. Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4. What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5. Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6. Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
