Desktop Fiber Laser Engraving Cutting Machine For Deep Engraving

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 15 working days
Brand: wadley
Product Description

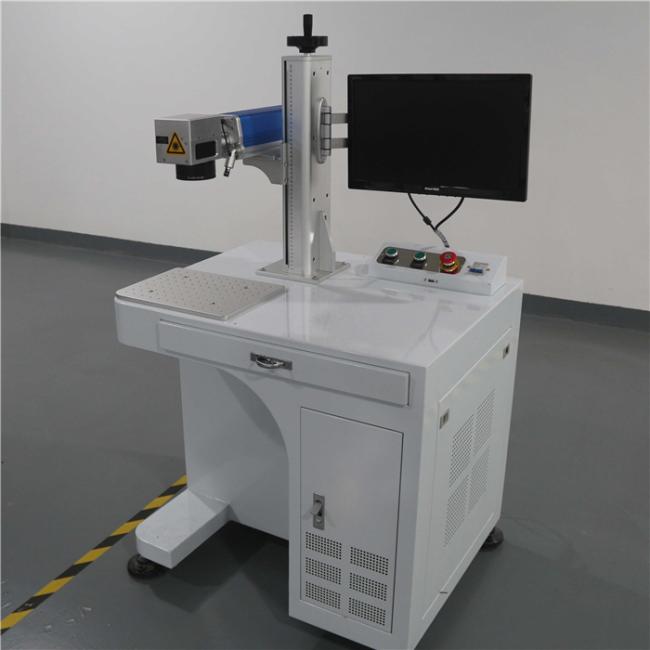

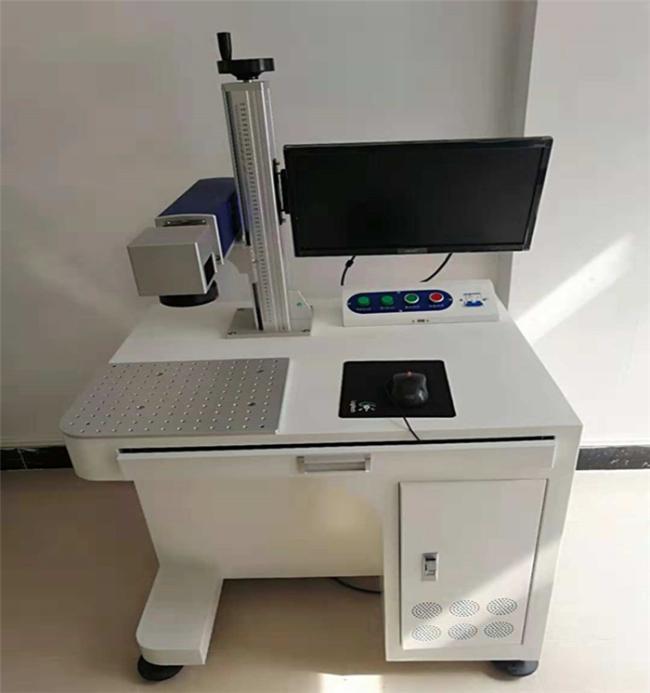

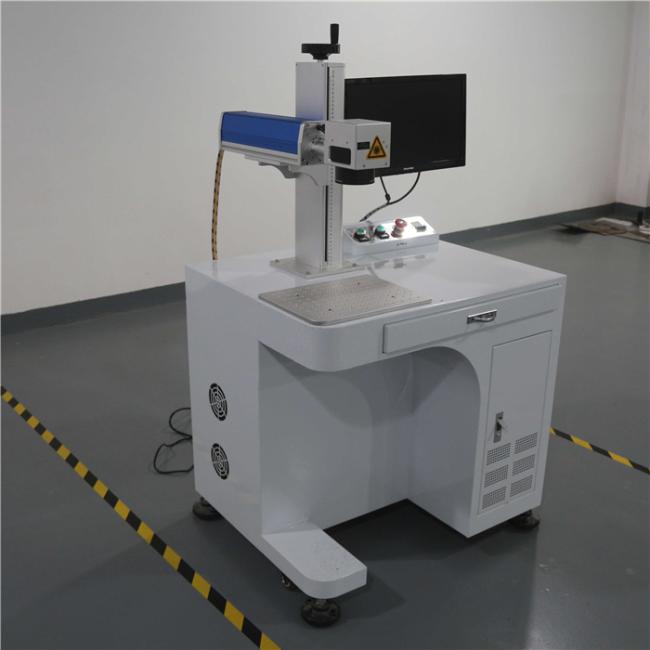

Desktop Fiber Laser Engraving Cutting Machine For Deep Engraving






Product Introduction:



(Marking Area:110*110mm,175*175mm,200*200mm)



1. We are Professional manufacturer of fiber laser marking / printing /engravingmachine since 2000, and have15 years experience for over-sea market.





2. Adopt professional Max / China Raycus / Germany IPG laser source





3. Application industry: all metal objects and some plastic objects.





4. this fiber laser marking machine professional software and full english user guider.





5. Delivery time: 2-3 working days.





6. warranty period: 1 years





Application:


20W 30W 50W Raycus / IPG / Max fiber laser marking marker machine for engraving / marking all of metals and some plastic.





20W 30W 50W Raycus / IPG / Max fiber laser marking marker machine








Model No. WDL-400A
Type Portable
Computer Not includes PC
IPG Series: Pulsed, High Energy Ytterbium Fiber Lasers
Nominal average output power 10W - 30W For PEDB-400A /400B /400C; 10W - 50W For PEDB-400D
Central emission wavelength: 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM) <10 nm
Pulse width, (FWHM) 100 ns
Pulse Repetition Rate* kHz 20-80 kHz
Energy per pulse (PRR = 20 kHz) 0.95 mJ
Typical beam quality, M2 <1.8
Output fiber delivery length 3m
Operating voltage: 220V
Scanning Speed: 0-7000mm/s
Marking Speed: 0-5000mm/s
Marking size: 110mm×110mm (F-theta 160)
Spot size: ≤ 40 micron (F-theta 160)
Cooling unit: Air cooled
Pilot laser: 650nm diode laser, visible red light for marking guide
Continuous working time: ≥16h
Net Dimensions: 70*20*50cm
Net Weight: 44 kgs
Gross Weight: 60 kgs








Q1. How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).


Q2. How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.


Q3. Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.


Q4. What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.


Q5. Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.


Q6. Can I trust you?
Sure, we're Made in China Gold Suppliers,


Q7. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.


Q8. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
