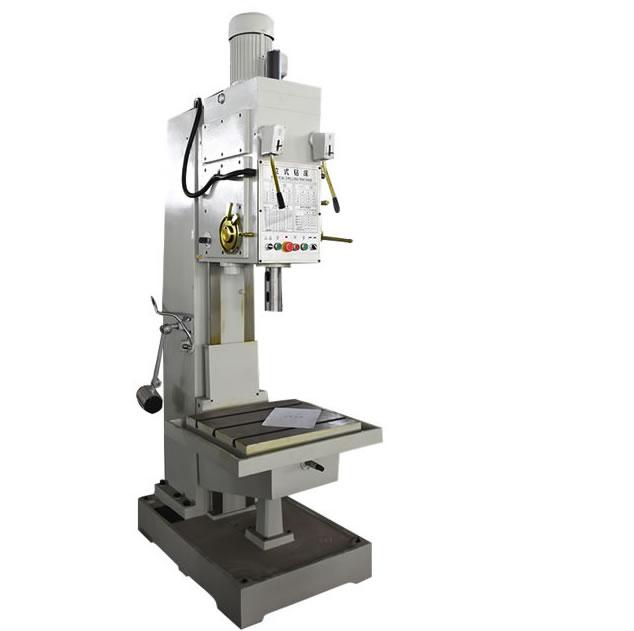

Gear Drive Milling And Drilling Machine / Z5140 Universal Metal Drilling
Gear Drive Milling And Drilling Machine / Z5140 Universal Metal Drilling
Z5140 vertical drilling machine can realize vertical and horizontal milling functions. The “drilling” spindle sleeve has two kinds of feeds, manual and micro-motion. The table guide rail is super-audio quenched and ground, and the workbench is divided into three types. Mode: Type A is three-way; Type C is one-way; Type D is two-way.
| specification | Z5140B-1 |
| Max drilling diameter (mm) | 40 |
| Spindle taper | MT4 |
| Spindle travel (mm) | 250 |
| Spindle box travel (manual) (mm) | 200 |
| Spindle speed step | 12 |
| Spindle speed range (r.p.m) | 31.5-1400 |
| Spindle feeding step | 9 |
| Spindle feeding range (mm/r) | 0.056-1.80 |
| Table size (mm) | 800×320 |
| Longitudinal/cross travel (mm) | 450/300 |
| Vertical travel (mm) | 300 |
| Max distance between spindle and table surface (mm) | 750 |
| Main motor power (kw) | 3 |
| Overall size (mm) | 1300×1200×2465 |
| Weight (kg) | 1350 |
Vertical drilling machine can feed automatically, and its power and strength allow the use of higher cutting dosage.
So use this kind of drilling machine can obtain higher labor productivity, and can gain higher machine precision.
Because of the wide range of spindle speed and feeding, it can match the different materials of cutting tool on
different processing. And it can use for drilling, spot facing, reaming and tapping screw.In the vertical drilling
machine, one more set of shaft head can drill dozens of holes at the same time
