Z5163 Large Metal Mold Processing Gear Drive And Spindle Travel 250mm
Z5163 Large Metal Mold Processing Gear Drive And Spindle Travel 250mm

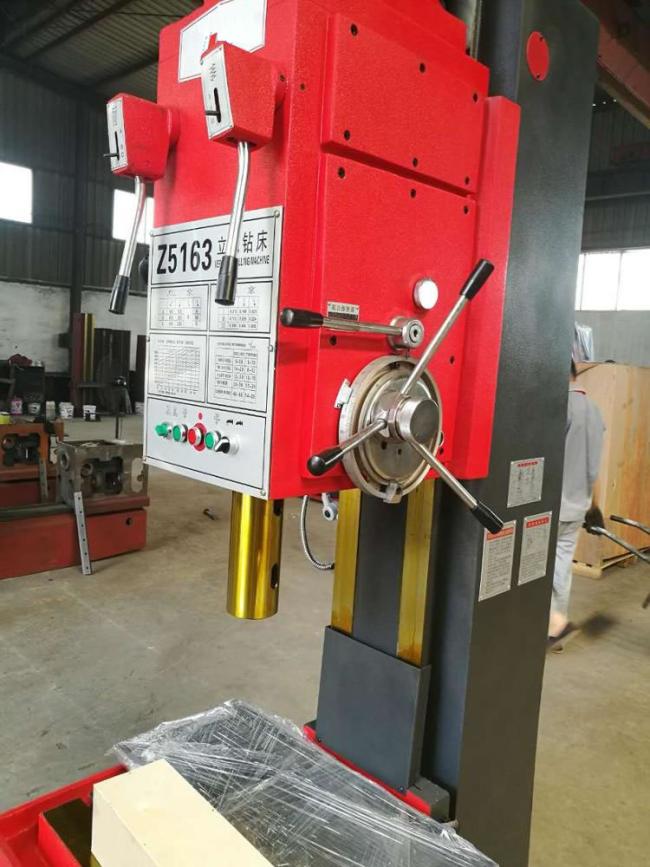

Z5163 vertical drilling machine can complete the processes of drilling, expanding, boring and tapping. It has the advantages of high precision, good rigidity, large torque, low noise and wide range of shifting. It is concentrated in operation and easy to use and maintain. The machine tool has a tapping automatic reversing mechanism, and the main tapping wire can realize automatic positive and negative reversal, which is very convenient for blind hole and deep hole tapping.
| Specifications | Z5163 |
| Max drilling diameter | 63mm |
| Max feed resistance | 30000N |
| Max. spindle allowable torque | 800N.m |
| Spindle taper | Morse NO.5 |
| Distance from spindle axis to column guideway | 375mm |
| Spindle travel | 250mm |
| Spindle box travel | 250mm |
| Spindle speed | 40-570r/min 9 steps |
| The amount of feed(mm/rev) | 0.1-0.78r/min 6 steps |
| Working table stroke | 300mm |
| Working table surface size | 650×550mm |
| Distance from spindle nose to table surface | 800mm |
| Main motor power | 5.5kw |
| Cooling pump flow | 25L/min |
| Overall dimension | 1452×965×2787mm |
| N/W | 2800kg |
The workpiece of Z5163 vertical drilling machine is fixed, the tool makes rotary motion and feeds in the direction of the main shaft. The operation can be manual or automatic.
The drilling machine has a simple structure and relatively low machining precision. It can drill through holes and blind holes, replace special tools, expand, boring, reaming or tapping.
